Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: OrderFill
Namespace: http://www.fpml.org/FpML-5/pretrade
Containing Schema: fpml-pretrade-processes-5-10.xsd
Abstract

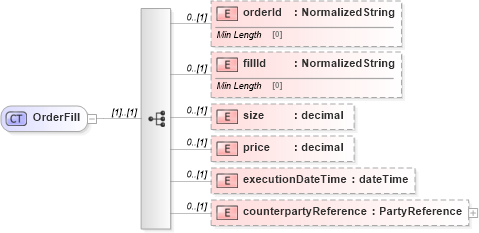

Collapse XSD Schema Diagram:
Drilldown into counterpartyReference in schema fpml-pretrade-processes-5-10_xsd Drilldown into executionDateTime in schema fpml-pretrade-processes-5-10_xsd Drilldown into price in schema fpml-pretrade-processes-5-10_xsd Drilldown into size in schema fpml-pretrade-processes-5-10_xsd Drilldown into fillId in schema fpml-pretrade-processes-5-10_xsd Drilldown into orderId in schema fpml-pretrade-processes-5-10_xsdXSD Diagram of OrderFill in schema fpml-pretrade-processes-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="OrderFill">
    <xsd:sequence>
        <xsd:element name="orderId" type="NormalizedString" minOccurs="0" />
        <xsd:element name="fillId" type="NormalizedString" minOccurs="0" />
        <xsd:element name="size" type="xsd:decimal" minOccurs="0" />
        <xsd:element name="price" type="xsd:decimal" minOccurs="0" />
        <xsd:element name="executionDateTime" type="xsd:dateTime" minOccurs="0" />
        <xsd:element name="counterpartyReference" type="PartyReference" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
orderId nsC:orderId 0 (1)
fillId nsC:fillId 0 (1)
size nsC:size 0 (1)
price nsC:price 0 (1)
executionDateTime nsC:executionDateTime 0 (1)
counterpartyReference nsC:counterpartyReference 0 (1)
Collapse Derivation Tree:
Collapse References:
nsC:fill, nsC:fill
