Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: parentEventIdentifier
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:BusinessEventIdentifier
Containing Schema: fpml-loan-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

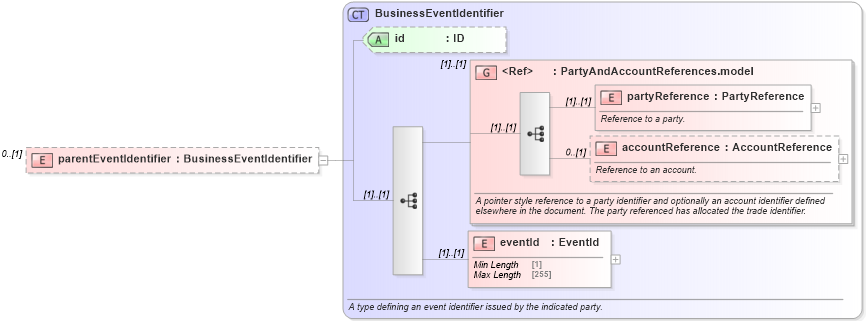

Collapse XSD Schema Diagram:
Drilldown into eventId in schema fpml-business-events-5-10_xsd Drilldown into accountReference in schema fpml-shared-5-10_xsd Drilldown into partyReference in schema fpml-shared-5-10_xsd Drilldown into PartyAndAccountReferences.model in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-business-events-5-10_xsd Drilldown into BusinessEventIdentifier in schema fpml-business-events-5-10_xsdXSD Diagram of parentEventIdentifier in schema fpml-loan-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="parentEventIdentifier" type="BusinessEventIdentifier" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
partyReference nsA:partyReference (1) (1)
accountReference nsA:accountReference 0 (1)
eventId nsA:eventId (1) (1)
<xs:group> nsA:PartyAndAccountReferences.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
