Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: PartyDocumentIdentifier
Namespace: http://www.fpml.org/FpML-5/legal
Containing Schema: fpml-legal-5-10.xsd
Abstract
Documentation:
A type defining a legal document identifier issued by the indicated party.

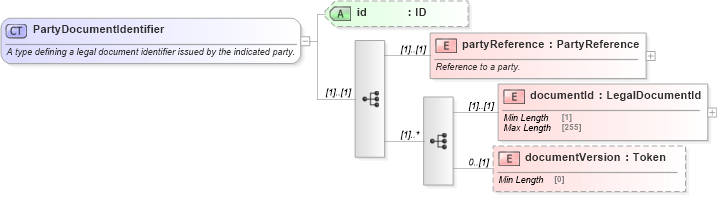

Collapse XSD Schema Diagram:
Drilldown into documentVersion in schema fpml-legal-5-10_xsd Drilldown into documentId in schema fpml-legal-5-10_xsd Drilldown into partyReference in schema fpml-legal-5-10_xsd Drilldown into id in schema fpml-legal-5-10_xsdXSD Diagram of PartyDocumentIdentifier in schema fpml-legal-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="PartyDocumentIdentifier">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining a legal document identifier issued by the indicated party.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="partyReference" type="PartyReference">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Reference to a party.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:sequence maxOccurs="unbounded">
            <xsd:element name="documentId" type="LegalDocumentId" />
            <xsd:element name="documentVersion" type="Token" minOccurs="0" />
        </xsd:sequence>
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
partyReference nsB:partyReference (1) (1)
documentId nsB:documentId (1) (1)
documentVersion nsB:documentVersion 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsB:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsB:partyDocumentIdentifier, nsB:partyDocumentIdentifier, nsB:partyDocumentIdentifier, nsB:partyDocumentIdentifier
