Documentation for Financial products Markup Language (FpML®)
Definition Type: Group
Name: PayerReceiver.model
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Containing Schema: fpml-shared-5-10.xsd

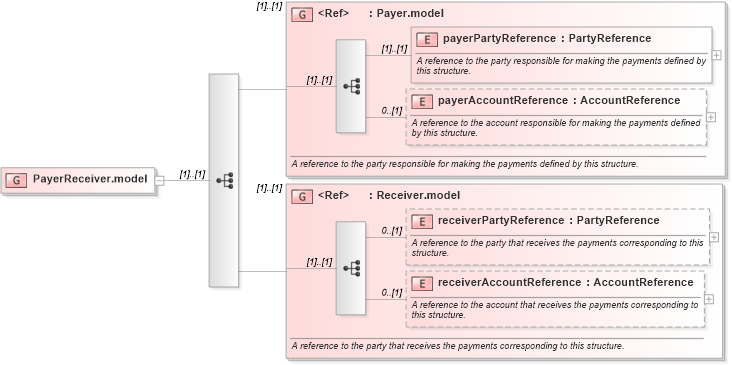

Collapse XSD Schema Diagram:
Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd3 Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd3 Drilldown into Receiver.model in schema fpml-shared-5-10_xsd3 Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd3 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd3 Drilldown into Payer.model in schema fpml-shared-5-10_xsd3XSD Diagram of PayerReceiver.model in schema fpml-shared-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="PayerReceiver.model">
    <xsd:sequence>
        <xsd:group ref="Payer.model">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A reference to the party responsible for making the payments defined by this structure.</xsd:documentation>
            </xsd:annotation>
        </xsd:group>
        <xsd:group ref="Receiver.model">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A reference to the party that receives the payments corresponding to this structure.</xsd:documentation>
            </xsd:annotation>
        </xsd:group>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsD:payerPartyReference (1) (1)
payerAccountReference nsD:payerAccountReference 0 (1)
receiverPartyReference nsD:receiverPartyReference 0 (1)
receiverAccountReference nsD:receiverAccountReference 0 (1)
<xs:group> nsD:Payer.model (1) (1)
<xs:group> nsD:Receiver.model (1) (1)
