Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: Payment
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:PaymentBase
Containing Schema: fpml-shared-5-10.xsd
Abstract
Documentation:
A type for defining payments. In Transparency view, normally the payer and receiver party references are not used; however they may be provided if necessary for administrative activities such as Reporting Party Determination in FX.

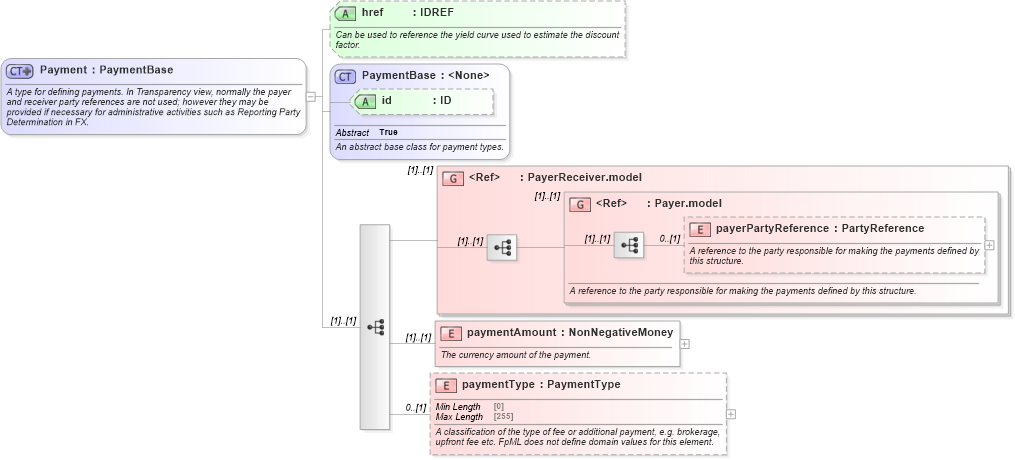

Collapse XSD Schema Diagram:
Drilldown into paymentType in schema fpml-shared-5-10_xsd5 Drilldown into paymentAmount in schema fpml-shared-5-10_xsd5 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd5 Drilldown into Payer.model in schema fpml-shared-5-10_xsd5 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd5 Drilldown into id in schema fpml-shared-5-10_xsd5 Drilldown into PaymentBase in schema fpml-shared-5-10_xsd5 Drilldown into href in schema fpml-shared-5-10_xsd5XSD Diagram of Payment in schema fpml-shared-5-10_xsd5 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="Payment">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining payments. In Transparency view, normally the payer and receiver party references are not used; however they may be provided if necessary for administrative activities such as Reporting Party Determination in FX.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="PaymentBase">
            <xsd:sequence>
                <xsd:group ref="PayerReceiver.model">
                    <xsd:annotation>
                    </xsd:annotation>
                </xsd:group>
                <xsd:element name="paymentAmount" type="NonNegativeMoney">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The currency amount of the payment.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="paymentType" type="PaymentType" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">A classification of the type of fee or additional payment, e.g. brokerage, upfront fee etc. FpML does not define domain values for this element.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
            <xsd:attribute name="href" type="xsd:IDREF" ecore:reference="PricingStructure" xmlns:ecore="http://www.eclipse.org/emf/2002/Ecore">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Can be used to reference the yield curve used to estimate the discount factor.</xsd:documentation>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
payerPartyReference nsF:payerPartyReference 0 (1)
paymentAmount nsF:paymentAmount (1) (1)
paymentType nsF:paymentType 0 (1)
<xs:group> nsF:PayerReceiver.model (1) (1)
<xs:group> nsF:Payer.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
href nsF:href (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:additionalPayment, nsF:additionalPayment, nsF:additionalPayment, nsF:additionalPayment, nsF:additionalPayment, nsF:additionalPayment, nsF:additionalPayment, nsF:exchangedCurrency1, nsF:exchangedCurrency2, nsF:payment, nsF:payment, nsF:premium, nsF:premium
