Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: PaymentDetail
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:PaymentBase
Containing Schema: fpml-shared-5-10.xsd
Abstract

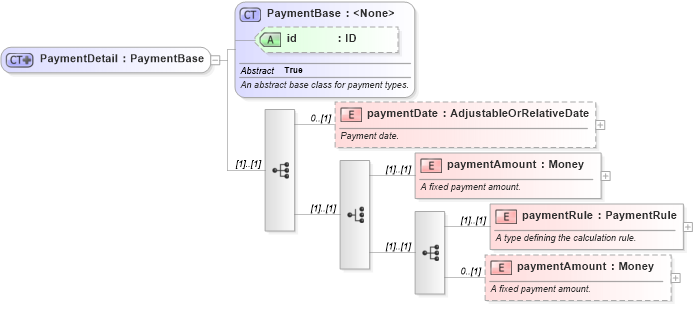

Collapse XSD Schema Diagram:
Drilldown into paymentAmount in schema fpml-shared-5-10_xsd Drilldown into paymentRule in schema fpml-shared-5-10_xsd Drilldown into paymentAmount in schema fpml-shared-5-10_xsd Drilldown into paymentDate in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into PaymentBase in schema fpml-shared-5-10_xsdXSD Diagram of PaymentDetail in schema fpml-shared-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="PaymentDetail">
    <xsd:complexContent>
        <xsd:extension base="PaymentBase">
            <xsd:sequence>
                <xsd:element name="paymentDate" type="AdjustableOrRelativeDate" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Payment date.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:choice>
                    <xsd:element name="paymentAmount" type="Money">
                        <xsd:annotation>
                            <xsd:documentation xml:lang="en">A fixed payment amount.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:sequence>
                        <xsd:element name="paymentRule" type="PaymentRule">
                            <xsd:annotation>
                                <xsd:documentation xml:lang="en">A type defining the calculation rule.</xsd:documentation>
                            </xsd:annotation>
                        </xsd:element>
                        <xsd:element name="paymentAmount" type="Money" minOccurs="0">
                            <xsd:annotation>
                                <xsd:documentation xml:lang="en">A fixed payment amount.</xsd:documentation>
                            </xsd:annotation>
                        </xsd:element>
                    </xsd:sequence>
                </xsd:choice>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
paymentDate nsA:paymentDate 0 (1)
paymentAmount nsA:paymentAmount (1) (1)
paymentRule nsA:paymentRule (1) (1)
paymentAmount nsA:paymentAmount 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:paymentDetail
