Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: PaymentMatching
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-reconciliation-5-10.xsd
Abstract
Documentation:
A global type describing the payment exposed to the matching process, along with its gross component(s) and calculation details.

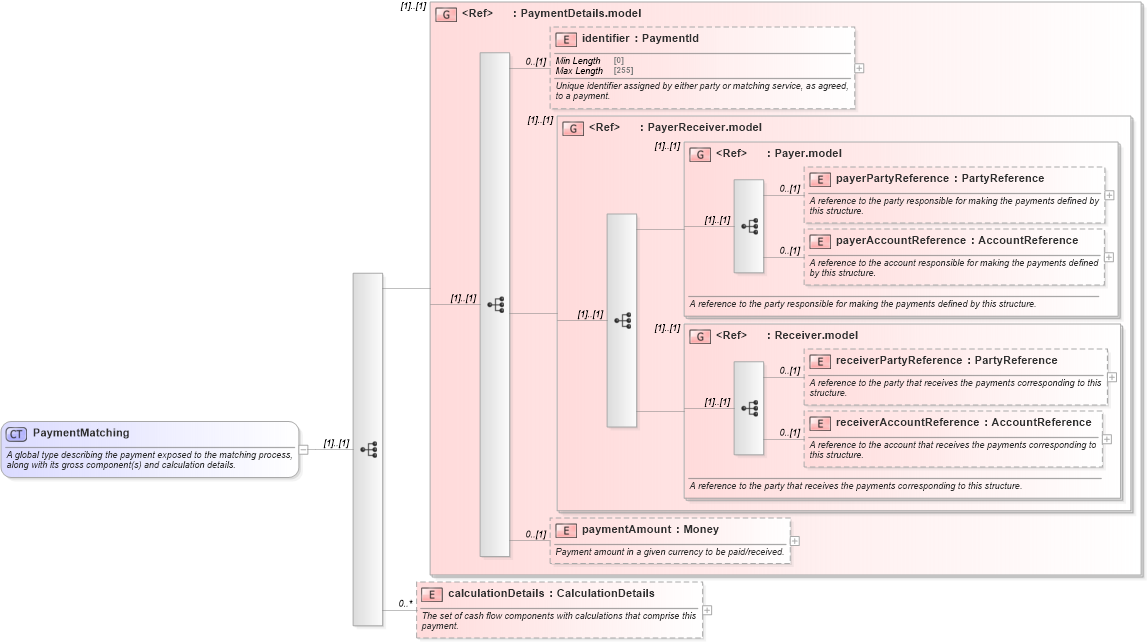

Collapse XSD Schema Diagram:
Drilldown into calculationDetails in schema fpml-reconciliation-5-10_xsd Drilldown into paymentAmount in schema fpml-shared-5-10_xsd4 Drilldown into receiverAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into receiverPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into Receiver.model in schema fpml-shared-5-10_xsd4 Drilldown into payerAccountReference in schema fpml-shared-5-10_xsd4 Drilldown into payerPartyReference in schema fpml-shared-5-10_xsd4 Drilldown into Payer.model in schema fpml-shared-5-10_xsd4 Drilldown into PayerReceiver.model in schema fpml-shared-5-10_xsd4 Drilldown into identifier in schema fpml-shared-5-10_xsd4 Drilldown into PaymentDetails.model in schema fpml-shared-5-10_xsd4XSD Diagram of PaymentMatching in schema fpml-reconciliation-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="PaymentMatching">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A global type describing the payment exposed to the matching process, along with its gross component(s) and calculation details.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="PaymentDetails.model" />
        <xsd:element name="calculationDetails" type="CalculationDetails" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The set of cash flow components with calculations that comprise this payment.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
identifier nsE:identifier 0 (1)
payerPartyReference nsE:payerPartyReference 0 (1)
payerAccountReference nsE:payerAccountReference 0 (1)
receiverPartyReference nsE:receiverPartyReference 0 (1)
receiverAccountReference nsE:receiverAccountReference 0 (1)
paymentAmount nsE:paymentAmount 0 (1)
calculationDetails nsE:calculationDetails 0 unbounded
<xs:group> nsE:PaymentDetails.model (1) (1)
<xs:group> nsE:PayerReceiver.model (1) (1)
<xs:group> nsE:Payer.model (1) (1)
<xs:group> nsE:Receiver.model (1) (1)
Collapse Derivation Tree:
Collapse References:
nsE:payment, nsE:payment
