Definition Type:	Element
Name:	payoff
Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	nsA:FxAccrualSettlementPeriodPayoff
Containing Schema:	fpml-fx-accruals-5-10.xsd
MinOccurs	(1)
MaxOccurs	unbounded
Abstract
Documentation:	Payoff Region within the settlement period to link strike with the relevant payoff components.

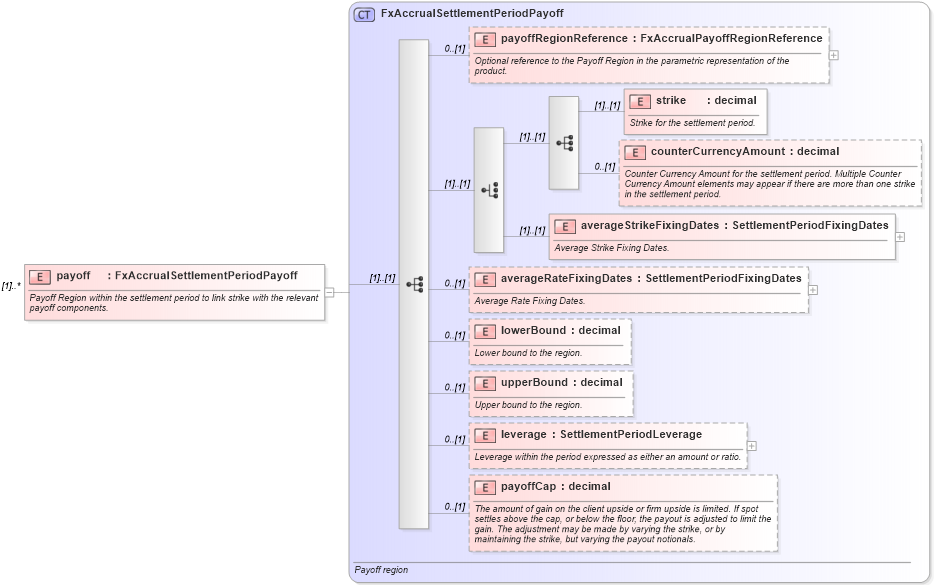

XSD Schema Diagram:

XSD Diagram of payoff in schema fpml-fx-accruals-5-10_xsd (Financial products Markup Language (FpML®))

XSD Schema Code:

<xsd:element name="payoff" type="FxAccrualSettlementPeriodPayoff" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Payoff Region within the settlement period to link strike with the relevant payoff components.</xsd:documentation>
    </xsd:annotation>
</xsd:element>

Child Elements:

Name	Type	Min Occurs	Max Occurs
payoffRegionReference	nsA:payoffRegionReference	0	(1)
strike	nsA:strike	(1)	(1)
counterCurrencyAmount	nsA:counterCurrencyAmount	0	(1)
averageStrikeFixingDates	nsA:averageStrikeFixingDates	(1)	(1)
averageRateFixingDates	nsA:averageRateFixingDates	0	(1)
lowerBound	nsA:lowerBound	0	(1)
upperBound	nsA:upperBound	0	(1)
leverage	nsA:leverage	0	(1)
payoffCap	nsA:payoffCap	0	(1)

Derivation Tree:
	nsA:FxAccrualSettlementPeriodPayoff *payoff*
