Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: payout
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:FxOptionPayout
Containing Schema: fpml-fx-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The amount of currency which becomes payable if and when a trigger event occurs.

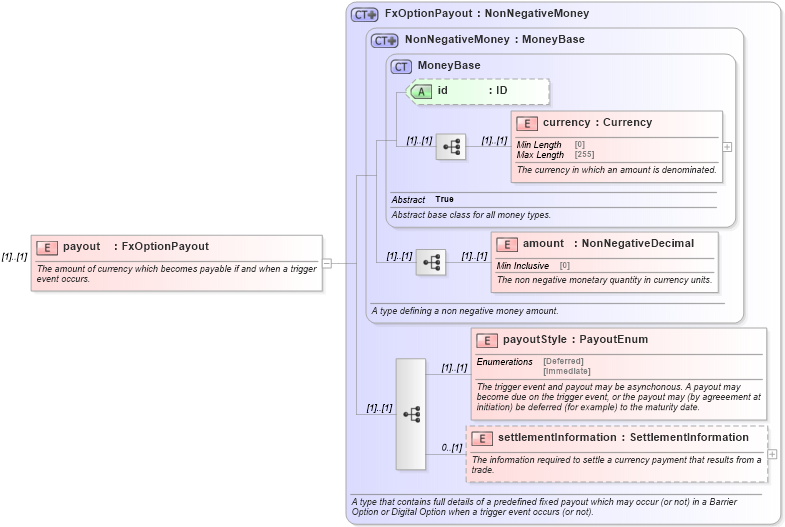

Collapse XSD Schema Diagram:
Drilldown into settlementInformation in schema fpml-fx-5-10_xsd Drilldown into payoutStyle in schema fpml-fx-5-10_xsd Drilldown into amount in schema fpml-shared-5-10_xsd Drilldown into currency in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into MoneyBase in schema fpml-shared-5-10_xsd Drilldown into NonNegativeMoney in schema fpml-shared-5-10_xsd Drilldown into FxOptionPayout in schema fpml-fx-5-10_xsdXSD Diagram of payout in schema fpml-fx-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="payout" type="FxOptionPayout">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The amount of currency which becomes payable if and when a trigger event occurs.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
currency nsA:currency (1) (1)
amount nsA:amount (1) (1)
payoutStyle nsA:payoutStyle (1) (1)
settlementInformation nsA:settlementInformation 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
