Definition Type: Element
Name: physicalQuantitySchedule
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:CommodityPhysicalQuantitySchedule
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Allows the documentation of a shaped quantity trade where the quantity changes over the life of the transaction.

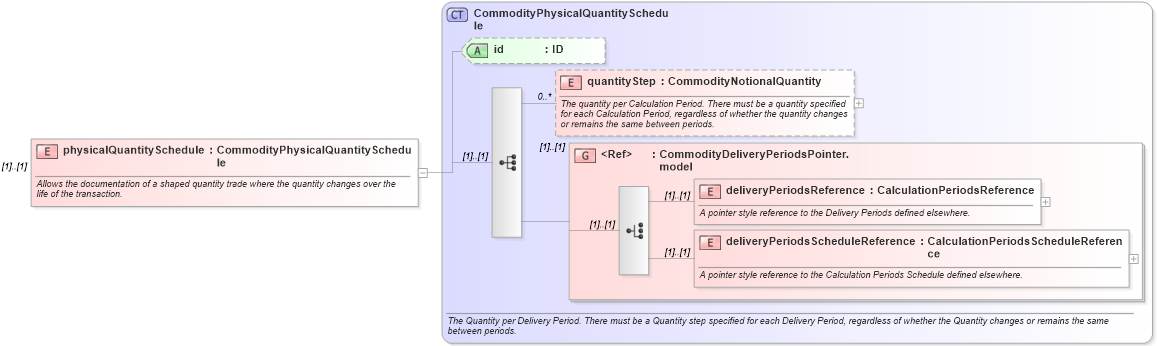

Collapse XSD Schema Diagram:
Drilldown into deliveryPeriodsScheduleReference in schema fpml-com-5-10_xsd1 Drilldown into deliveryPeriodsReference in schema fpml-com-5-10_xsd1 Drilldown into CommodityDeliveryPeriodsPointer.model in schema fpml-com-5-10_xsd1 Drilldown into quantityStep in schema fpml-com-5-10_xsd1 Drilldown into id in schema fpml-com-5-10_xsd1 Drilldown into CommodityPhysicalQuantitySchedule in schema fpml-com-5-10_xsd1XSD Diagram of physicalQuantitySchedule in schema fpml-com-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="physicalQuantitySchedule" type="CommodityPhysicalQuantitySchedule">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Allows the documentation of a shaped quantity trade where the quantity changes over the life of the transaction.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
quantityStep nsD:quantityStep 0 unbounded
deliveryPeriodsReference nsD:deliveryPeriodsReference (1) (1)
deliveryPeriodsScheduleReference nsD:deliveryPeriodsScheduleReference (1) (1)
<xs:group> nsD:CommodityDeliveryPeriodsPointer.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
