Definition Type: Element
Name: physicalQuantitySchedule
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:ElectricityPhysicalDeliveryQuantitySchedule
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
Allows the documentation of a shaped quantity trade where the quantity changes over the life of the transaction. Note that if the range of Settlement Periods also varies over the life of the transaction this element should not be used. Instead, physicalQuantity should be repeated for each range of Settlement Periods that apply at any point during the trade.

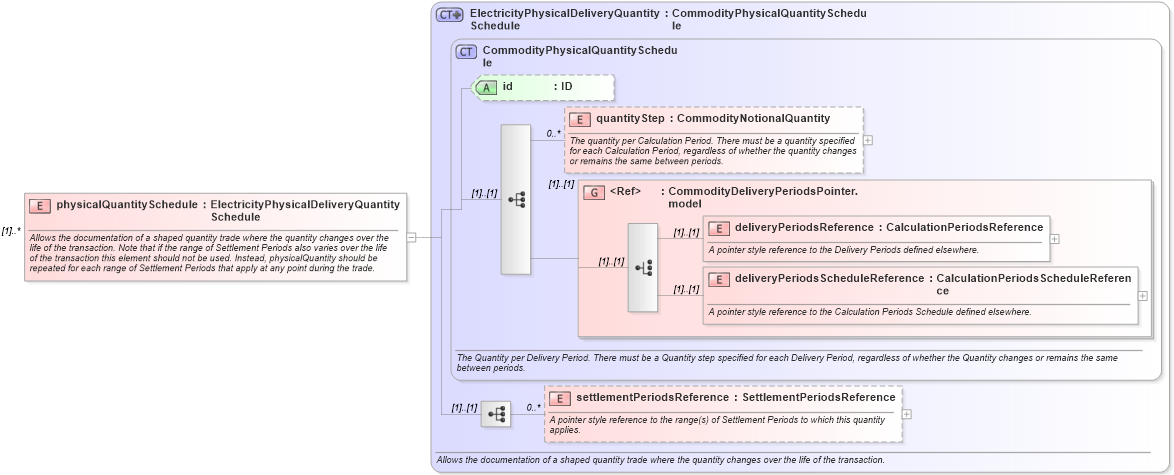

Collapse XSD Schema Diagram:
Drilldown into settlementPeriodsReference in schema fpml-com-5-10_xsd2 Drilldown into deliveryPeriodsScheduleReference in schema fpml-com-5-10_xsd2 Drilldown into deliveryPeriodsReference in schema fpml-com-5-10_xsd2 Drilldown into CommodityDeliveryPeriodsPointer.model in schema fpml-com-5-10_xsd2 Drilldown into quantityStep in schema fpml-com-5-10_xsd2 Drilldown into id in schema fpml-com-5-10_xsd2 Drilldown into CommodityPhysicalQuantitySchedule in schema fpml-com-5-10_xsd2 Drilldown into ElectricityPhysicalDeliveryQuantitySchedule in schema fpml-com-5-10_xsd2XSD Diagram of physicalQuantitySchedule in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="physicalQuantitySchedule" type="ElectricityPhysicalDeliveryQuantitySchedule" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Allows the documentation of a shaped quantity trade where the quantity changes over the life of the transaction. Note that if the range of Settlement Periods also varies over the life of the transaction this element should not be used. Instead, physicalQuantity should be repeated for each range of Settlement Periods that apply at any point during the trade.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
quantityStep nsE:quantityStep 0 unbounded
deliveryPeriodsReference nsE:deliveryPeriodsReference (1) (1)
deliveryPeriodsScheduleReference nsE:deliveryPeriodsScheduleReference (1) (1)
settlementPeriodsReference nsE:settlementPeriodsReference 0 unbounded
<xs:group> nsE:CommodityDeliveryPeriodsPointer.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
