Definition Type: Element
Name: physicalSettlement
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:FxTargetPhysicalSettlement
Containing Schema: fpml-fx-targets-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Collapse XSD Schema Diagram:

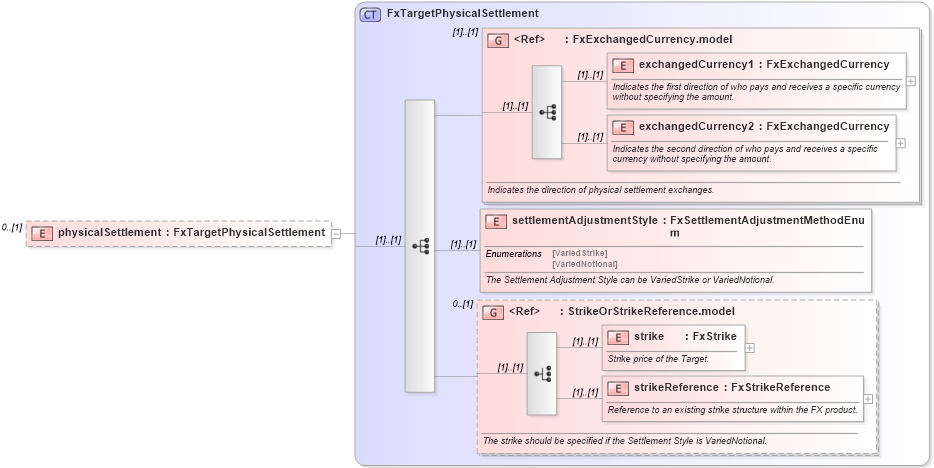

Drilldown into strikeReference in schema fpml-fx-targets-5-10_xsd1 Drilldown into strike in schema fpml-fx-targets-5-10_xsd1 Drilldown into StrikeOrStrikeReference.model in schema fpml-fx-targets-5-10_xsd1 Drilldown into settlementAdjustmentStyle in schema fpml-fx-targets-5-10_xsd1 Drilldown into exchangedCurrency2 in schema fpml-fx-targets-5-10_xsd1 Drilldown into exchangedCurrency1 in schema fpml-fx-targets-5-10_xsd1 Drilldown into FxExchangedCurrency.model in schema fpml-fx-targets-5-10_xsd1 Drilldown into FxTargetPhysicalSettlement in schema fpml-fx-targets-5-10_xsd1XSD Diagram of physicalSettlement in schema fpml-fx-targets-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="physicalSettlement" type="FxTargetPhysicalSettlement" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
exchangedCurrency1 nsD:exchangedCurrency1 (1) (1)
exchangedCurrency2 nsD:exchangedCurrency2 (1) (1)
settlementAdjustmentStyle nsD:settlementAdjustmentStyle (1) (1)
strike nsD:strike (1) (1)
strikeReference nsD:strikeReference (1) (1)
<xs:group> nsD:FxExchangedCurrency.model (1) (1)
<xs:group> nsD:StrikeOrStrikeReference.model 0 (1)
Collapse Derivation Tree:
