Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: physicalSettlementTerms
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsC:PhysicalSettlementTerms
Containing Schema: fpml-cd-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
This element contains all the ISDA terms relevant to physical settlement for when physical settlement is applicable. ISDA 2003 Term: Physical Settlement

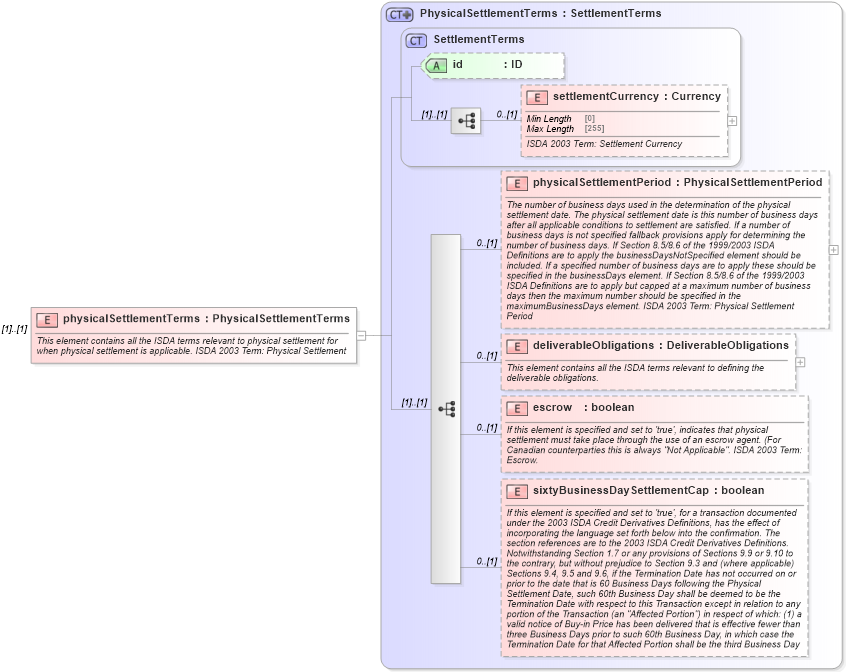

Collapse XSD Schema Diagram:
Drilldown into sixtyBusinessDaySettlementCap in schema fpml-cd-5-10_xsd1 Drilldown into escrow in schema fpml-cd-5-10_xsd1 Drilldown into deliverableObligations in schema fpml-cd-5-10_xsd1 Drilldown into physicalSettlementPeriod in schema fpml-cd-5-10_xsd1 Drilldown into settlementCurrency in schema fpml-option-shared-5-10_xsd1 Drilldown into id in schema fpml-option-shared-5-10_xsd1 Drilldown into SettlementTerms in schema fpml-option-shared-5-10_xsd1 Drilldown into PhysicalSettlementTerms in schema fpml-cd-5-10_xsd1XSD Diagram of physicalSettlementTerms in schema fpml-cd-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="physicalSettlementTerms" type="PhysicalSettlementTerms">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">This element contains all the ISDA terms relevant to physical settlement for when physical settlement is applicable. ISDA 2003 Term: Physical Settlement</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
settlementCurrency nsC:settlementCurrency 0 (1)
physicalSettlementPeriod nsC:physicalSettlementPeriod 0 (1)
deliverableObligations nsC:deliverableObligations 0 (1)
escrow nsC:escrow 0 (1)
sixtyBusinessDaySettlementCap nsC:sixtyBusinessDaySettlementCap 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id Optional
Collapse Derivation Tree:
