Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: pipeline
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:OilPipelineDelivery
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Specified the delivery conditions where the oil product is to be delivered by pipeline.

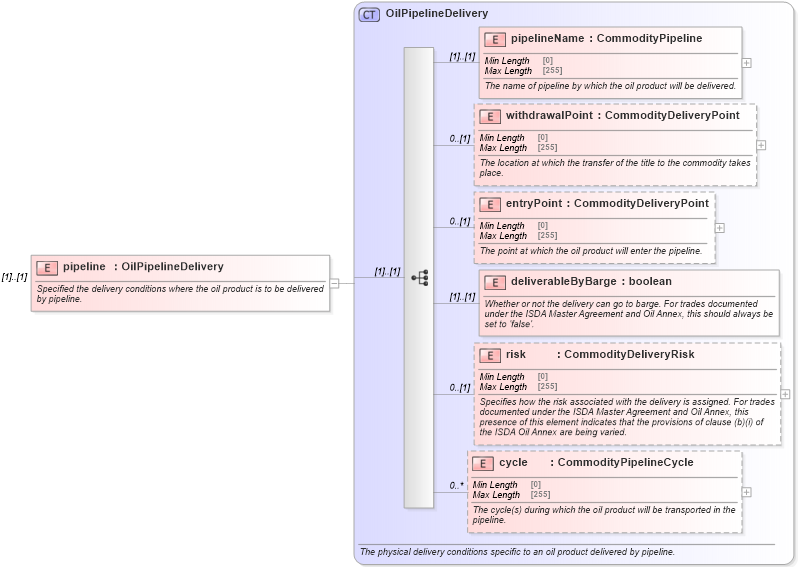

Collapse XSD Schema Diagram:
Drilldown into cycle in schema fpml-com-5-10_xsd Drilldown into risk in schema fpml-com-5-10_xsd Drilldown into deliverableByBarge in schema fpml-com-5-10_xsd Drilldown into entryPoint in schema fpml-com-5-10_xsd Drilldown into withdrawalPoint in schema fpml-com-5-10_xsd Drilldown into pipelineName in schema fpml-com-5-10_xsd Drilldown into OilPipelineDelivery in schema fpml-com-5-10_xsdXSD Diagram of pipeline in schema fpml-com-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="pipeline" type="OilPipelineDelivery">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Specified the delivery conditions where the oil product is to be delivered by pipeline.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pipelineName nsA:pipelineName (1) (1)
withdrawalPoint nsA:withdrawalPoint 0 (1)
entryPoint nsA:entryPoint 0 (1)
deliverableByBarge nsA:deliverableByBarge (1) (1)
risk nsA:risk 0 (1)
cycle nsA:cycle 0 unbounded
Collapse Derivation Tree:
