Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: pivot
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:FxPivot
Containing Schema: fpml-fx-targets-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The boundary where the contract flips from being long and short is the pivot point. So the pivot indicates the level in which there is a change in direction of the currencies exchanged by the parties.

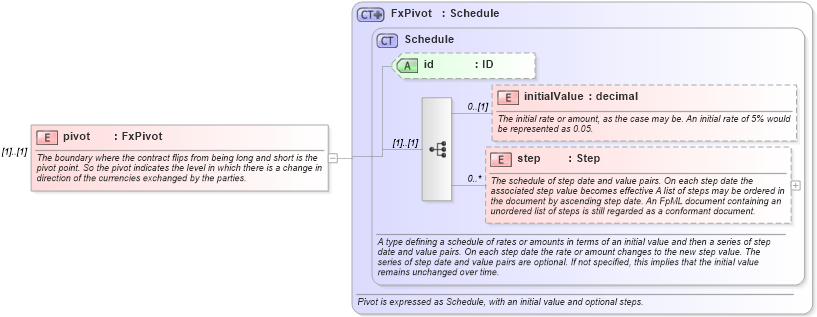

Collapse XSD Schema Diagram:
Drilldown into step in schema fpml-shared-5-10_xsd4 Drilldown into initialValue in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into Schedule in schema fpml-shared-5-10_xsd4 Drilldown into FxPivot in schema fpml-fx-targets-5-10_xsd2XSD Diagram of pivot in schema fpml-fx-targets-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="pivot" type="FxPivot">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The boundary where the contract flips from being long and short is the pivot point. So the pivot indicates the level in which there is a change in direction of the currencies exchanged by the parties.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
initialValue nsE:initialValue 0 (1)
step nsE:step 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
