Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: point
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:PricingStructurePoint
Containing Schema: fpml-mktenv-5-10.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

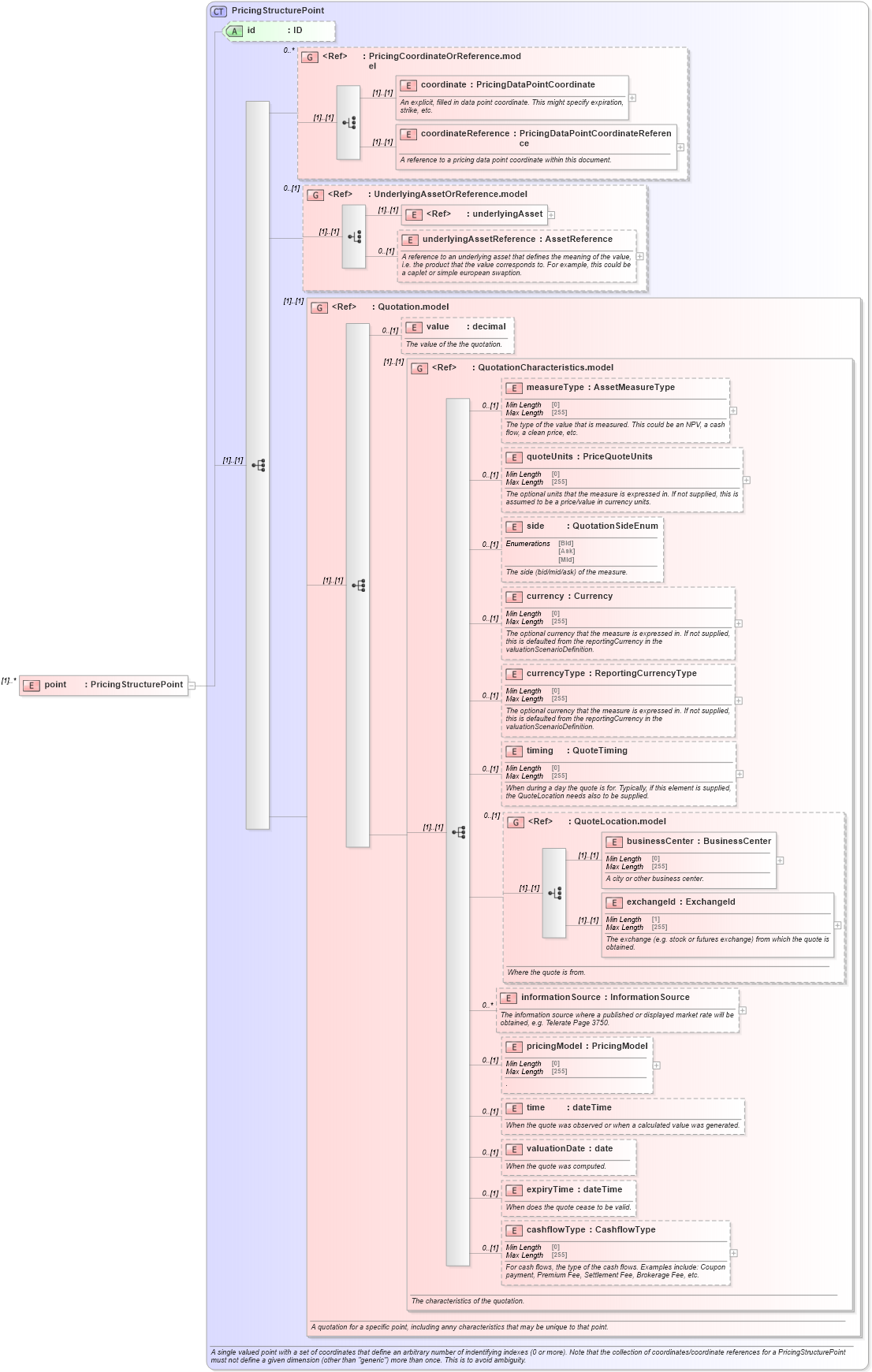

Collapse XSD Schema Diagram:
Drilldown into cashflowType in schema fpml-asset-5-10_xsd Drilldown into expiryTime in schema fpml-asset-5-10_xsd Drilldown into valuationDate in schema fpml-asset-5-10_xsd Drilldown into time in schema fpml-asset-5-10_xsd Drilldown into pricingModel in schema fpml-asset-5-10_xsd Drilldown into informationSource in schema fpml-asset-5-10_xsd Drilldown into exchangeId in schema fpml-asset-5-10_xsd Drilldown into businessCenter in schema fpml-asset-5-10_xsd Drilldown into QuoteLocation.model in schema fpml-asset-5-10_xsd Drilldown into timing in schema fpml-asset-5-10_xsd Drilldown into currencyType in schema fpml-asset-5-10_xsd Drilldown into currency in schema fpml-asset-5-10_xsd Drilldown into side in schema fpml-asset-5-10_xsd Drilldown into quoteUnits in schema fpml-asset-5-10_xsd Drilldown into measureType in schema fpml-asset-5-10_xsd Drilldown into QuotationCharacteristics.model in schema fpml-asset-5-10_xsd Drilldown into value in schema fpml-asset-5-10_xsd Drilldown into Quotation.model in schema fpml-asset-5-10_xsd Drilldown into underlyingAssetReference in schema fpml-mktenv-5-10_xsd Drilldown into underlyingAsset in schema fpml-asset-5-10_xsd Drilldown into UnderlyingAssetOrReference.model in schema fpml-mktenv-5-10_xsd Drilldown into coordinateReference in schema fpml-riskdef-5-10_xsd Drilldown into coordinate in schema fpml-riskdef-5-10_xsd Drilldown into PricingCoordinateOrReference.model in schema fpml-riskdef-5-10_xsd Drilldown into id in schema fpml-mktenv-5-10_xsd Drilldown into PricingStructurePoint in schema fpml-mktenv-5-10_xsdXSD Diagram of point in schema fpml-mktenv-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="point" type="PricingStructurePoint" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
coordinate nsA:coordinate (1) (1)
coordinateReference nsA:coordinateReference (1) (1)
underlyingAsset nsA:underlyingAsset (1) (1)
underlyingAssetReference nsA:underlyingAssetReference 0 (1)
value nsA:value 0 (1)
measureType nsA:measureType 0 (1)
quoteUnits nsA:quoteUnits 0 (1)
side nsA:side 0 (1)
currency nsA:currency 0 (1)
currencyType nsA:currencyType 0 (1)
timing nsA:timing 0 (1)
businessCenter nsA:businessCenter (1) (1)
exchangeId nsA:exchangeId (1) (1)
informationSource nsA:informationSource 0 unbounded
pricingModel nsA:pricingModel 0 (1)
time nsA:time 0 (1)
valuationDate nsA:valuationDate 0 (1)
expiryTime nsA:expiryTime 0 (1)
cashflowType nsA:cashflowType 0 (1)
<xs:group> nsA:PricingCoordinateOrReference.model 0 unbounded
<xs:group> nsA:UnderlyingAssetOrReference.model 0 (1)
<xs:group> nsA:Quotation.model (1) (1)
<xs:group> nsA:QuotationCharacteristics.model (1) (1)
<xs:group> nsA:QuoteLocation.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
