Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: point
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:PricingStructurePoint
Containing Schema: fpml-mktenv-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

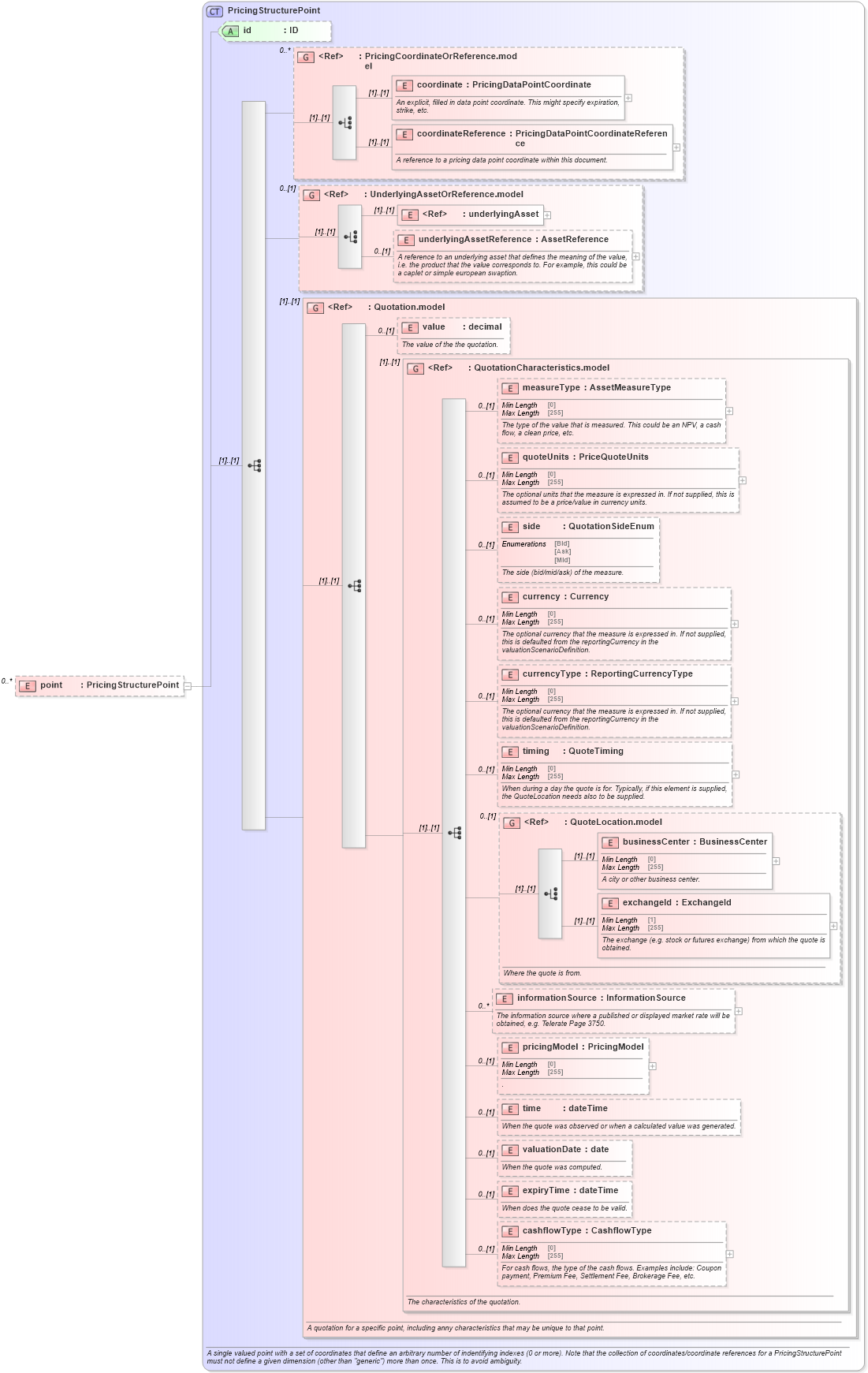

Collapse XSD Schema Diagram:
Drilldown into cashflowType in schema fpml-asset-5-10_xsd3 Drilldown into expiryTime in schema fpml-asset-5-10_xsd3 Drilldown into valuationDate in schema fpml-asset-5-10_xsd3 Drilldown into time in schema fpml-asset-5-10_xsd3 Drilldown into pricingModel in schema fpml-asset-5-10_xsd3 Drilldown into informationSource in schema fpml-asset-5-10_xsd3 Drilldown into exchangeId in schema fpml-asset-5-10_xsd3 Drilldown into businessCenter in schema fpml-asset-5-10_xsd3 Drilldown into QuoteLocation.model in schema fpml-asset-5-10_xsd3 Drilldown into timing in schema fpml-asset-5-10_xsd3 Drilldown into currencyType in schema fpml-asset-5-10_xsd3 Drilldown into currency in schema fpml-asset-5-10_xsd3 Drilldown into side in schema fpml-asset-5-10_xsd3 Drilldown into quoteUnits in schema fpml-asset-5-10_xsd3 Drilldown into measureType in schema fpml-asset-5-10_xsd3 Drilldown into QuotationCharacteristics.model in schema fpml-asset-5-10_xsd3 Drilldown into value in schema fpml-asset-5-10_xsd3 Drilldown into Quotation.model in schema fpml-asset-5-10_xsd3 Drilldown into underlyingAssetReference in schema fpml-mktenv-5-10_xsd1 Drilldown into underlyingAsset in schema fpml-asset-5-10_xsd3 Drilldown into UnderlyingAssetOrReference.model in schema fpml-mktenv-5-10_xsd1 Drilldown into coordinateReference in schema fpml-riskdef-5-10_xsd1 Drilldown into coordinate in schema fpml-riskdef-5-10_xsd1 Drilldown into PricingCoordinateOrReference.model in schema fpml-riskdef-5-10_xsd1 Drilldown into id in schema fpml-mktenv-5-10_xsd1 Drilldown into PricingStructurePoint in schema fpml-mktenv-5-10_xsd1XSD Diagram of point in schema fpml-mktenv-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="point" type="PricingStructurePoint" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
coordinate nsD:coordinate (1) (1)
coordinateReference nsD:coordinateReference (1) (1)
underlyingAsset nsD:underlyingAsset (1) (1)
underlyingAssetReference nsD:underlyingAssetReference 0 (1)
value nsD:value 0 (1)
measureType nsD:measureType 0 (1)
quoteUnits nsD:quoteUnits 0 (1)
side nsD:side 0 (1)
currency nsD:currency 0 (1)
currencyType nsD:currencyType 0 (1)
timing nsD:timing 0 (1)
businessCenter nsD:businessCenter (1) (1)
exchangeId nsD:exchangeId (1) (1)
informationSource nsD:informationSource 0 unbounded
pricingModel nsD:pricingModel 0 (1)
time nsD:time 0 (1)
valuationDate nsD:valuationDate 0 (1)
expiryTime nsD:expiryTime 0 (1)
cashflowType nsD:cashflowType 0 (1)
<xs:group> nsD:PricingCoordinateOrReference.model 0 unbounded
<xs:group> nsD:UnderlyingAssetOrReference.model 0 (1)
<xs:group> nsD:Quotation.model (1) (1)
<xs:group> nsD:QuotationCharacteristics.model (1) (1)
<xs:group> nsD:QuoteLocation.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
