Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: point
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:PricingStructurePoint
Containing Schema: fpml-mktenv-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

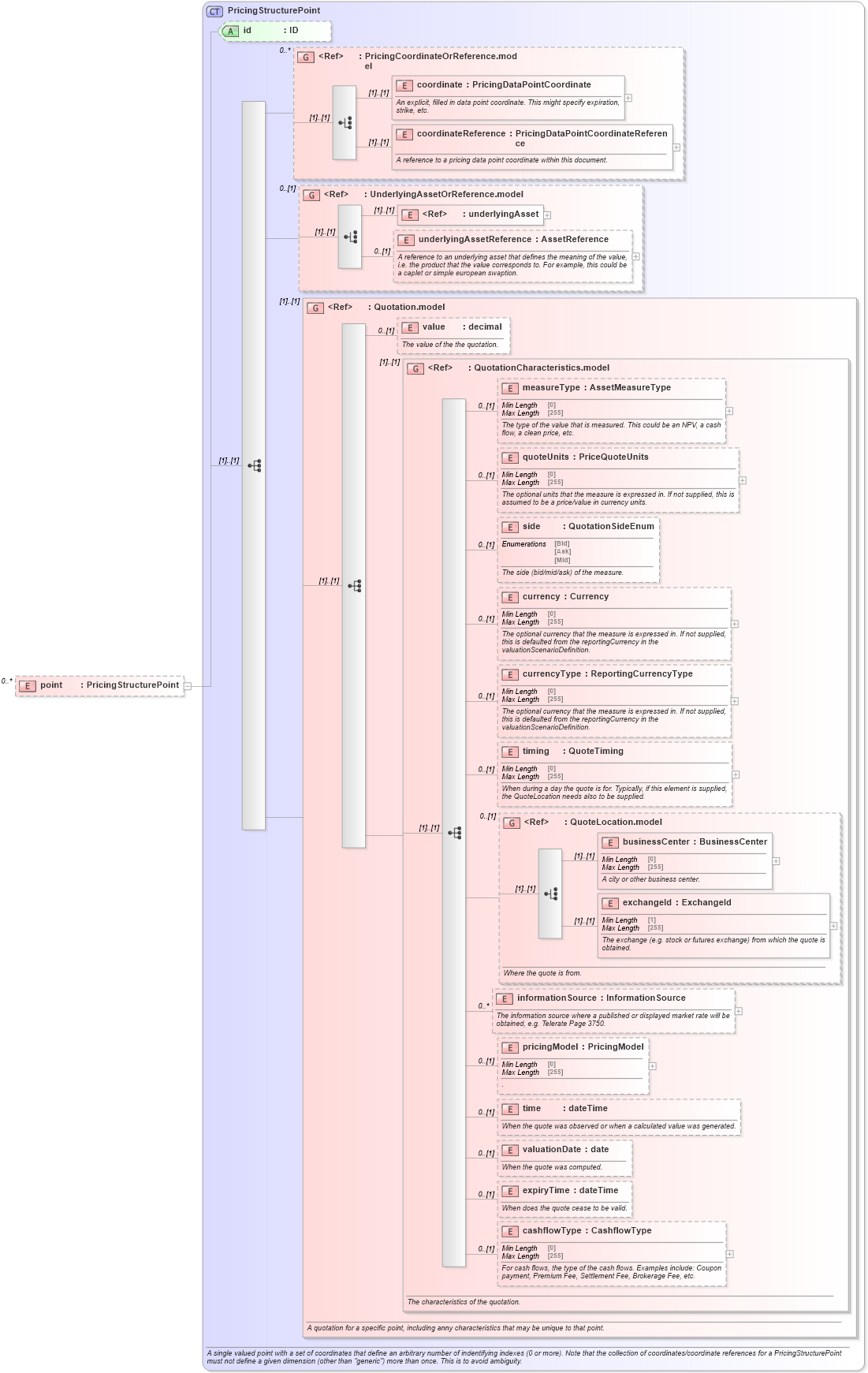

Collapse XSD Schema Diagram:
Drilldown into cashflowType in schema fpml-asset-5-10_xsd4 Drilldown into expiryTime in schema fpml-asset-5-10_xsd4 Drilldown into valuationDate in schema fpml-asset-5-10_xsd4 Drilldown into time in schema fpml-asset-5-10_xsd4 Drilldown into pricingModel in schema fpml-asset-5-10_xsd4 Drilldown into informationSource in schema fpml-asset-5-10_xsd4 Drilldown into exchangeId in schema fpml-asset-5-10_xsd4 Drilldown into businessCenter in schema fpml-asset-5-10_xsd4 Drilldown into QuoteLocation.model in schema fpml-asset-5-10_xsd4 Drilldown into timing in schema fpml-asset-5-10_xsd4 Drilldown into currencyType in schema fpml-asset-5-10_xsd4 Drilldown into currency in schema fpml-asset-5-10_xsd4 Drilldown into side in schema fpml-asset-5-10_xsd4 Drilldown into quoteUnits in schema fpml-asset-5-10_xsd4 Drilldown into measureType in schema fpml-asset-5-10_xsd4 Drilldown into QuotationCharacteristics.model in schema fpml-asset-5-10_xsd4 Drilldown into value in schema fpml-asset-5-10_xsd4 Drilldown into Quotation.model in schema fpml-asset-5-10_xsd4 Drilldown into underlyingAssetReference in schema fpml-mktenv-5-10_xsd2 Drilldown into underlyingAsset in schema fpml-asset-5-10_xsd4 Drilldown into UnderlyingAssetOrReference.model in schema fpml-mktenv-5-10_xsd2 Drilldown into coordinateReference in schema fpml-riskdef-5-10_xsd2 Drilldown into coordinate in schema fpml-riskdef-5-10_xsd2 Drilldown into PricingCoordinateOrReference.model in schema fpml-riskdef-5-10_xsd2 Drilldown into id in schema fpml-mktenv-5-10_xsd2 Drilldown into PricingStructurePoint in schema fpml-mktenv-5-10_xsd2XSD Diagram of point in schema fpml-mktenv-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="point" type="PricingStructurePoint" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
coordinate nsE:coordinate (1) (1)
coordinateReference nsE:coordinateReference (1) (1)
underlyingAsset nsE:underlyingAsset (1) (1)
underlyingAssetReference nsE:underlyingAssetReference 0 (1)
value nsE:value 0 (1)
measureType nsE:measureType 0 (1)
quoteUnits nsE:quoteUnits 0 (1)
side nsE:side 0 (1)
currency nsE:currency 0 (1)
currencyType nsE:currencyType 0 (1)
timing nsE:timing 0 (1)
businessCenter nsE:businessCenter (1) (1)
exchangeId nsE:exchangeId (1) (1)
informationSource nsE:informationSource 0 unbounded
pricingModel nsE:pricingModel 0 (1)
time nsE:time 0 (1)
valuationDate nsE:valuationDate 0 (1)
expiryTime nsE:expiryTime 0 (1)
cashflowType nsE:cashflowType 0 (1)
<xs:group> nsE:PricingCoordinateOrReference.model 0 unbounded
<xs:group> nsE:UnderlyingAssetOrReference.model 0 (1)
<xs:group> nsE:Quotation.model (1) (1)
<xs:group> nsE:QuotationCharacteristics.model (1) (1)
<xs:group> nsE:QuoteLocation.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
Documentation for Financial products Markup Language (FpML®)

Generated using Liquid Studio - Developer Bundle 21.0.0.0
