Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: pool
Namespace: http://www.fpml.org/FpML-5/pretrade
Type: nsC:AssetPool
Containing Schema: fpml-asset-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The morgage pool that is underneath the mortgage obligation.

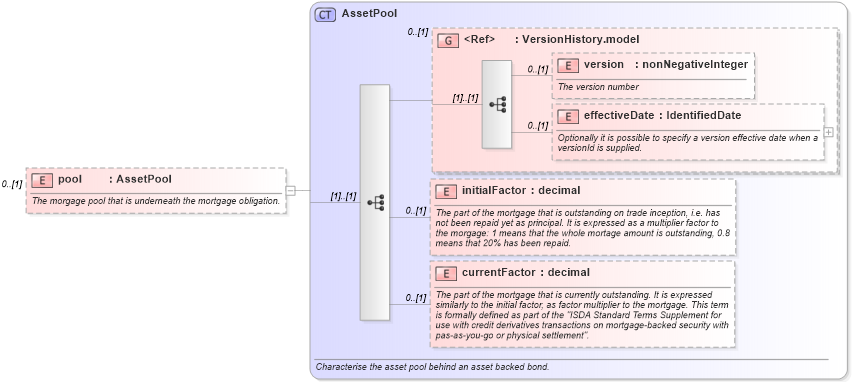

Collapse XSD Schema Diagram:
Drilldown into currentFactor in schema fpml-asset-5-10_xsd2 Drilldown into initialFactor in schema fpml-asset-5-10_xsd2 Drilldown into effectiveDate in schema fpml-shared-5-10_xsd2 Drilldown into version in schema fpml-shared-5-10_xsd2 Drilldown into VersionHistory.model in schema fpml-shared-5-10_xsd2 Drilldown into AssetPool in schema fpml-asset-5-10_xsd2XSD Diagram of pool in schema fpml-asset-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="pool" type="AssetPool" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The morgage pool that is underneath the mortgage obligation.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
version nsC:version 0 (1)
effectiveDate nsC:effectiveDate 0 (1)
initialFactor nsC:initialFactor 0 (1)
currentFactor nsC:currentFactor 0 (1)
<xs:group> nsC:VersionHistory.model 0 (1)
Collapse Derivation Tree:
