Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: PrevailingTime
Namespace: http://www.fpml.org/FpML-5/transparency
Containing Schema: fpml-shared-5-10.xsd
Abstract
Documentation:
A type for defining a time with respect to a geographic location, for example 11:00 Phoenix, USA. This type should be used where a wider range of locations than those available as business centres is required.

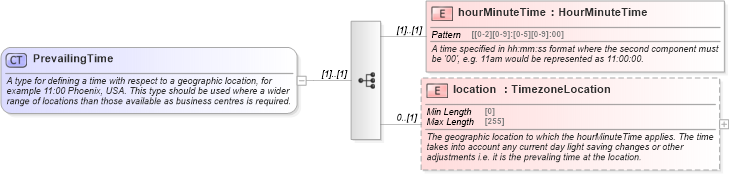

Collapse XSD Schema Diagram:
Drilldown into location in schema fpml-shared-5-10_xsd5 Drilldown into hourMinuteTime in schema fpml-shared-5-10_xsd5XSD Diagram of PrevailingTime in schema fpml-shared-5-10_xsd5 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="PrevailingTime">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type for defining a time with respect to a geographic location, for example 11:00 Phoenix, USA. This type should be used where a wider range of locations than those available as business centres is required.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="hourMinuteTime" type="HourMinuteTime">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A time specified in hh:mm:ss format where the second component must be '00', e.g. 11am would be represented as 11:00:00.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="location" type="TimezoneLocation" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The geographic location to which the hourMinuteTime applies. The time takes into account any current day light saving changes or other adjustments i.e. it is the prevaling time at the location.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
hourMinuteTime nsF:hourMinuteTime (1) (1)
location nsF:location 0 (1)
Collapse Derivation Tree:
Collapse References:
nsF:time
