Definition Type: Element
Name: pricingStructure
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:PricingStructure
Containing Schema: fpml-riskdef-5-10.xsd
Abstract True

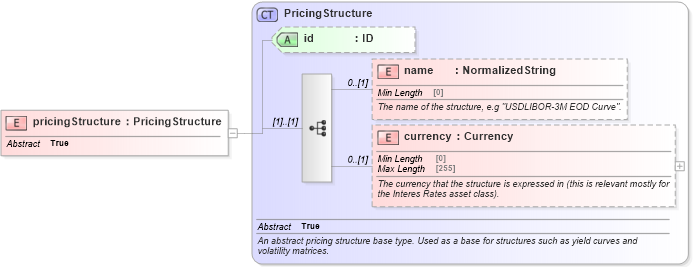

Collapse XSD Schema Diagram:
Drilldown into currency in schema fpml-shared-5-10_xsd Drilldown into name in schema fpml-shared-5-10_xsd Drilldown into id in schema fpml-shared-5-10_xsd Drilldown into PricingStructure in schema fpml-shared-5-10_xsdXSD Diagram of pricingStructure in schema fpml-riskdef-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="pricingStructure" type="PricingStructure" abstract="true" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsA:name 0 (1)
currency nsA:currency 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id (Optional)
Collapse Derivation Tree:
