Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: Quotation
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-valuation-5-10.xsd
Abstract
Documentation:
Some kind of numerical measure about an asset, eg. its NPV, together with characteristics of that measure, together with optional sensitivities.

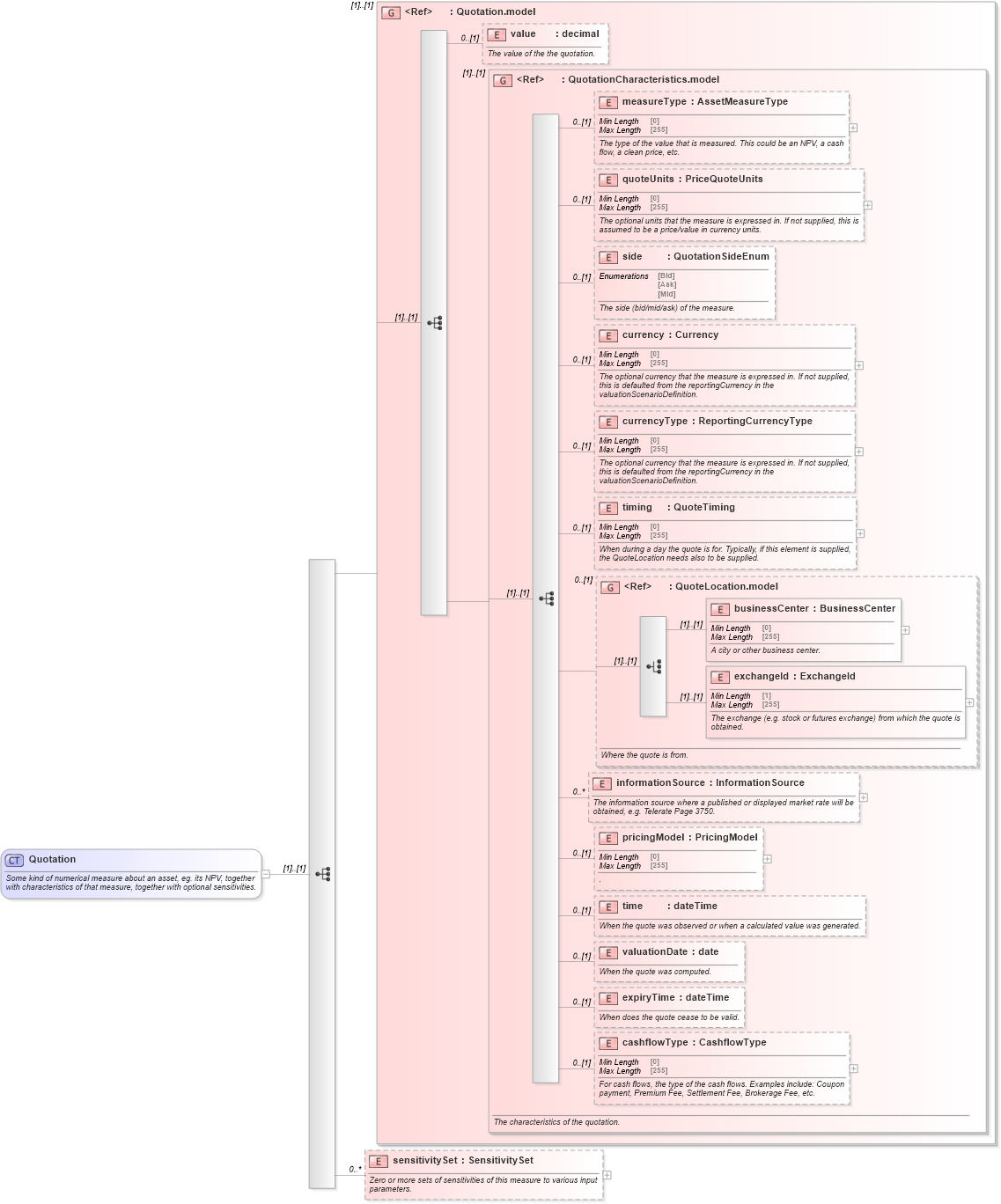

Collapse XSD Schema Diagram:
Drilldown into sensitivitySet in schema fpml-valuation-5-10_xsd Drilldown into cashflowType in schema fpml-asset-5-10_xsd Drilldown into expiryTime in schema fpml-asset-5-10_xsd Drilldown into valuationDate in schema fpml-asset-5-10_xsd Drilldown into time in schema fpml-asset-5-10_xsd Drilldown into pricingModel in schema fpml-asset-5-10_xsd Drilldown into informationSource in schema fpml-asset-5-10_xsd Drilldown into exchangeId in schema fpml-asset-5-10_xsd Drilldown into businessCenter in schema fpml-asset-5-10_xsd Drilldown into QuoteLocation.model in schema fpml-asset-5-10_xsd Drilldown into timing in schema fpml-asset-5-10_xsd Drilldown into currencyType in schema fpml-asset-5-10_xsd Drilldown into currency in schema fpml-asset-5-10_xsd Drilldown into side in schema fpml-asset-5-10_xsd Drilldown into quoteUnits in schema fpml-asset-5-10_xsd Drilldown into measureType in schema fpml-asset-5-10_xsd Drilldown into QuotationCharacteristics.model in schema fpml-asset-5-10_xsd Drilldown into value in schema fpml-asset-5-10_xsd Drilldown into Quotation.model in schema fpml-asset-5-10_xsdXSD Diagram of Quotation in schema fpml-valuation-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="Quotation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Some kind of numerical measure about an asset, eg. its NPV, together with characteristics of that measure, together with optional sensitivities.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="Quotation.model" />
        <xsd:element name="sensitivitySet" type="SensitivitySet" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Zero or more sets of sensitivities of this measure to various input parameters.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
value nsA:value 0 (1)
measureType nsA:measureType 0 (1)
quoteUnits nsA:quoteUnits 0 (1)
side nsA:side 0 (1)
currency nsA:currency 0 (1)
currencyType nsA:currencyType 0 (1)
timing nsA:timing 0 (1)
businessCenter nsA:businessCenter (1) (1)
exchangeId nsA:exchangeId (1) (1)
informationSource nsA:informationSource 0 unbounded
pricingModel nsA:pricingModel 0 (1)
time nsA:time 0 (1)
valuationDate nsA:valuationDate 0 (1)
expiryTime nsA:expiryTime 0 (1)
cashflowType nsA:cashflowType 0 (1)
sensitivitySet nsA:sensitivitySet 0 unbounded
<xs:group> nsA:Quotation.model (1) (1)
<xs:group> nsA:QuotationCharacteristics.model (1) (1)
<xs:group> nsA:QuoteLocation.model 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:quote
