Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: quotedCurrencyPair
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:QuotedCurrencyPair
Containing Schema: fpml-business-events-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Defines the currency pair and quote basis for an FX rate.

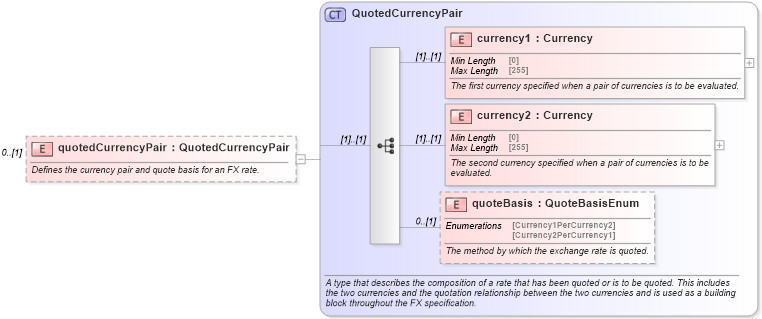

Collapse XSD Schema Diagram:
Drilldown into quoteBasis in schema fpml-shared-5-10_xsd3 Drilldown into currency2 in schema fpml-shared-5-10_xsd3 Drilldown into currency1 in schema fpml-shared-5-10_xsd3 Drilldown into QuotedCurrencyPair in schema fpml-shared-5-10_xsd3XSD Diagram of quotedCurrencyPair in schema fpml-business-events-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="quotedCurrencyPair" type="QuotedCurrencyPair" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines the currency pair and quote basis for an FX rate.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
currency1 nsD:currency1 (1) (1)
currency2 nsD:currency2 (1) (1)
quoteBasis nsD:quoteBasis 0 (1)
Collapse Derivation Tree:
