Definition Type: ComplexType
Name: ReferenceObligation
Namespace: http://www.fpml.org/FpML-5/transparency
Containing Schema: fpml-cd-5-10.xsd
Abstract

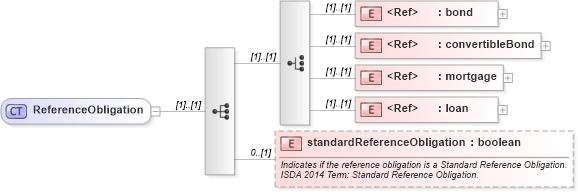

Collapse XSD Schema Diagram:
Drilldown into standardReferenceObligation in schema fpml-cd-5-10_xsd4 Drilldown into loan in schema fpml-asset-5-10_xsd5 Drilldown into mortgage in schema fpml-asset-5-10_xsd5 Drilldown into convertibleBond in schema fpml-asset-5-10_xsd5 Drilldown into bond in schema fpml-asset-5-10_xsd5XSD Diagram of ReferenceObligation in schema fpml-cd-5-10_xsd4 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="ReferenceObligation">
    <xsd:sequence>
        <xsd:choice>
            <xsd:element ref="bond" />
            <xsd:element ref="convertibleBond" />
            <xsd:element ref="mortgage" />
            <xsd:element ref="loan" />
        </xsd:choice>
        <xsd:element name="standardReferenceObligation" type="xsd:boolean" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Indicates if the reference obligation is a Standard Reference Obligation. ISDA 2014 Term: Standard Reference Obligation.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
bond nsF:bond (1) (1)
convertibleBond nsF:convertibleBond (1) (1)
mortgage nsF:mortgage (1) (1)
loan nsF:loan (1) (1)
standardReferenceObligation nsF:standardReferenceObligation 0 (1)
Collapse Derivation Tree:
Collapse References:
nsF:referenceObligation, nsF:referenceObligation
