Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: relatedParty
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:RelatedParty
Containing Schema: fpml-reporting-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

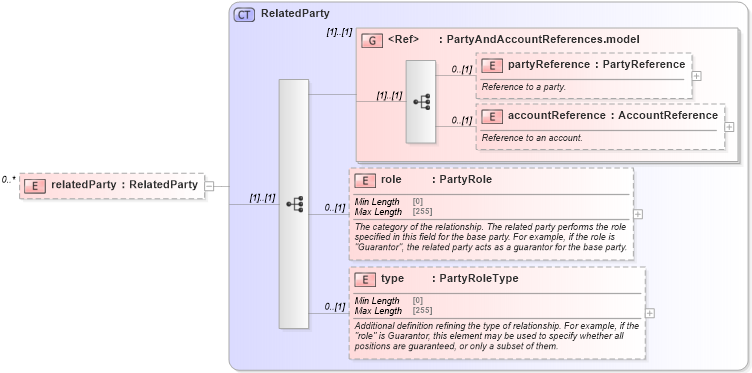

Collapse XSD Schema Diagram:
Drilldown into type in schema fpml-shared-5-10_xsd4 Drilldown into role in schema fpml-shared-5-10_xsd4 Drilldown into accountReference in schema fpml-shared-5-10_xsd4 Drilldown into partyReference in schema fpml-shared-5-10_xsd4 Drilldown into PartyAndAccountReferences.model in schema fpml-shared-5-10_xsd4 Drilldown into RelatedParty in schema fpml-shared-5-10_xsd4XSD Diagram of relatedParty in schema fpml-reporting-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="relatedParty" type="RelatedParty" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
partyReference nsE:partyReference 0 (1)
accountReference nsE:accountReference 0 (1)
role nsE:role 0 (1)
type nsE:type 0 (1)
<xs:group> nsE:PartyAndAccountReferences.model (1) (1)
Collapse Derivation Tree:
