Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: RelatedPerson
Namespace: http://www.fpml.org/FpML-5/pretrade
Containing Schema: fpml-shared-5-10.xsd
Abstract

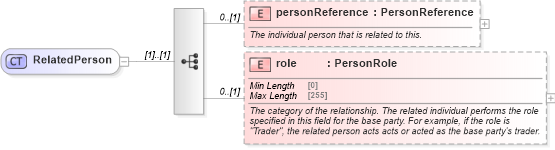

Collapse XSD Schema Diagram:
Drilldown into role in schema fpml-shared-5-10_xsd2 Drilldown into personReference in schema fpml-shared-5-10_xsd2XSD Diagram of RelatedPerson in schema fpml-shared-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="RelatedPerson">
    <xsd:sequence>
        <xsd:element name="personReference" type="PersonReference" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The individual person that is related to this.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="role" type="PersonRole" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">The category of the relationship. The related individual performs the role specified in this field for the base party. For example, if the role is "Trader", the related person acts acts or acted as the base party's trader.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
personReference nsC:personReference 0 (1)
role nsC:role 0 (1)
Collapse Derivation Tree:
Collapse References:
nsC:relatedPerson
