Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: repo
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:Repo
Containing Schema: fpml-repo-5-10.xsd
Abstract
Documentation:
Global element representing a Repo.

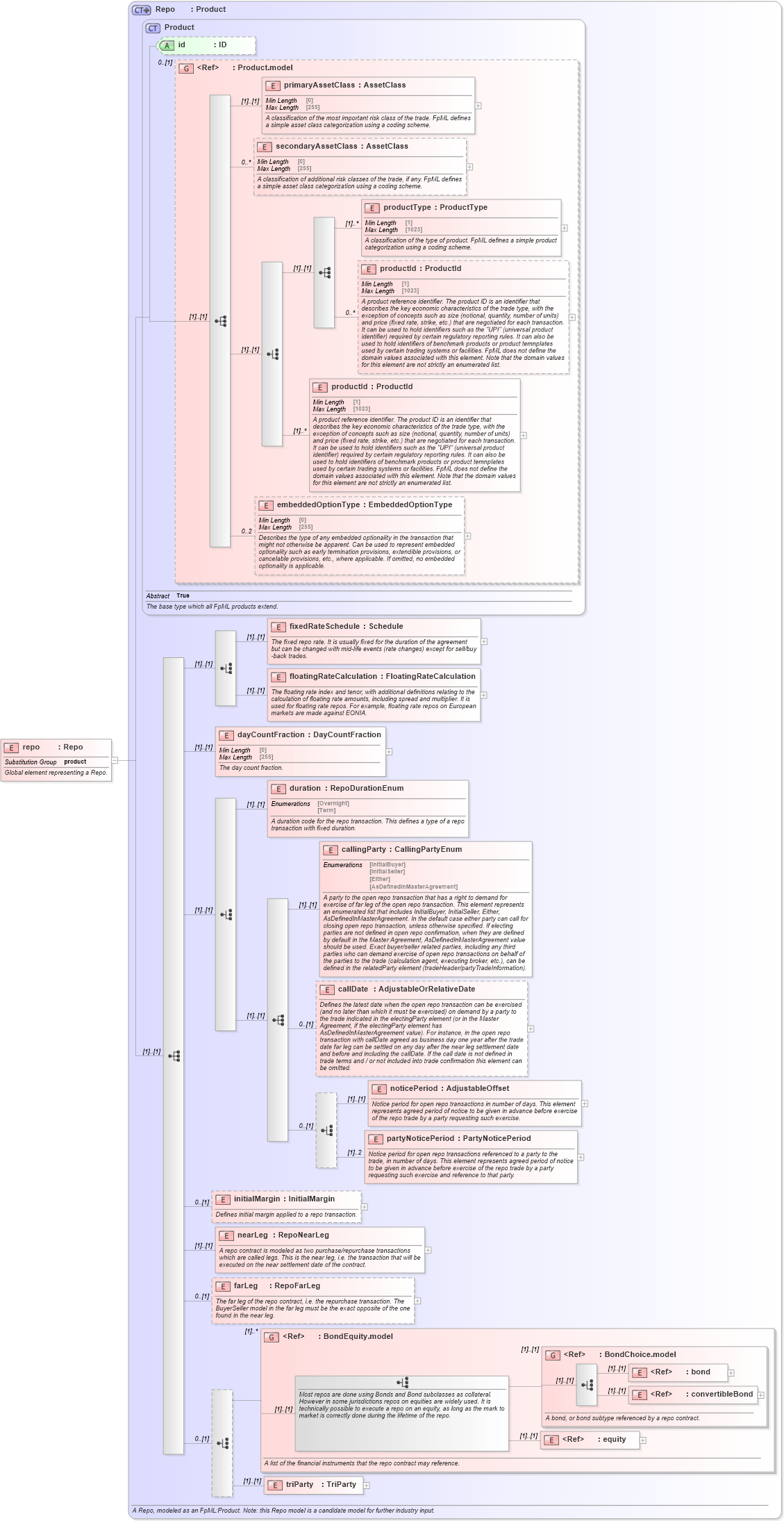

Collapse XSD Schema Diagram:
Drilldown into triParty in schema fpml-repo-5-10_xsd1 Drilldown into equity in schema fpml-asset-5-10_xsd3 Drilldown into convertibleBond in schema fpml-asset-5-10_xsd3 Drilldown into bond in schema fpml-asset-5-10_xsd3 Drilldown into BondChoice.model in schema fpml-asset-5-10_xsd3 Drilldown into BondEquity.model in schema fpml-repo-5-10_xsd1 Drilldown into farLeg in schema fpml-repo-5-10_xsd1 Drilldown into nearLeg in schema fpml-repo-5-10_xsd1 Drilldown into initialMargin in schema fpml-repo-5-10_xsd1 Drilldown into partyNoticePeriod in schema fpml-repo-5-10_xsd1 Drilldown into noticePeriod in schema fpml-repo-5-10_xsd1 Drilldown into callDate in schema fpml-repo-5-10_xsd1 Drilldown into callingParty in schema fpml-repo-5-10_xsd1 Drilldown into duration in schema fpml-repo-5-10_xsd1 Drilldown into dayCountFraction in schema fpml-repo-5-10_xsd1 Drilldown into floatingRateCalculation in schema fpml-repo-5-10_xsd1 Drilldown into fixedRateSchedule in schema fpml-repo-5-10_xsd1 Drilldown into embeddedOptionType in schema fpml-shared-5-10_xsd3 Drilldown into productId in schema fpml-shared-5-10_xsd3 Drilldown into productId in schema fpml-shared-5-10_xsd3 Drilldown into productType in schema fpml-shared-5-10_xsd3 Drilldown into secondaryAssetClass in schema fpml-shared-5-10_xsd3 Drilldown into primaryAssetClass in schema fpml-shared-5-10_xsd3 Drilldown into Product.model in schema fpml-shared-5-10_xsd3 Drilldown into id in schema fpml-shared-5-10_xsd3 Drilldown into Product in schema fpml-shared-5-10_xsd3 Drilldown into Repo in schema fpml-repo-5-10_xsd1XSD Diagram of repo in schema fpml-repo-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="repo" type="Repo" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Global element representing a Repo.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
primaryAssetClass nsD:primaryAssetClass (1) (1)
secondaryAssetClass nsD:secondaryAssetClass 0 unbounded
productType nsD:productType (1) unbounded
productId nsD:productId 0 unbounded
productId nsD:productId (1) unbounded
embeddedOptionType nsD:embeddedOptionType 0 2
fixedRateSchedule nsD:fixedRateSchedule (1) (1)
floatingRateCalculation nsD:floatingRateCalculation (1) (1)
dayCountFraction nsD:dayCountFraction (1) (1)
duration nsD:duration (1) (1)
callingParty nsD:callingParty (1) (1)
callDate nsD:callDate 0 (1)
noticePeriod nsD:noticePeriod (1) (1)
partyNoticePeriod nsD:partyNoticePeriod (1) 2
initialMargin nsD:initialMargin 0 (1)
nearLeg nsD:nearLeg (1) (1)
farLeg nsD:farLeg 0 (1)
bond nsD:bond (1) (1)
convertibleBond nsD:convertibleBond (1) (1)
equity nsD:equity (1) (1)
triParty nsD:triParty (1) (1)
<xs:group> nsD:BondEquity.model (1) unbounded
<xs:group> nsD:BondChoice.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsD:product
