Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: reportingRegime
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:ReportingRegimeIdentifier
Containing Schema: fpml-business-events-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
DEPRECATED. The supervisor/regulator to which this withdrawal applies

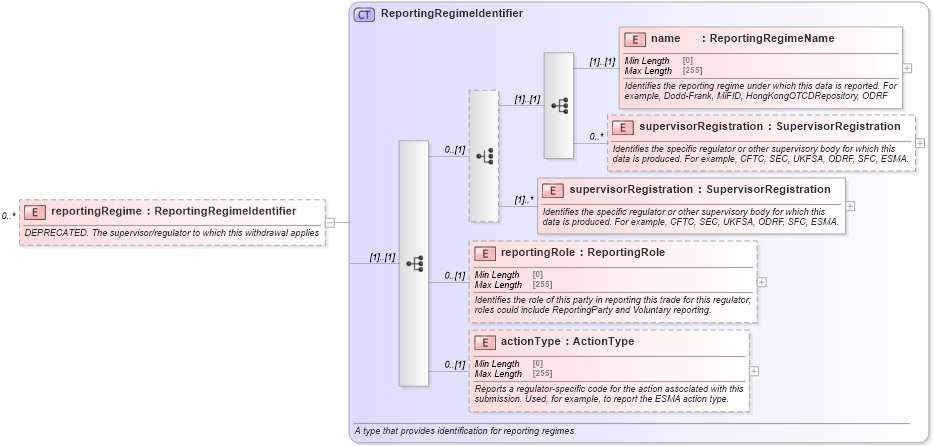

Collapse XSD Schema Diagram:
Drilldown into actionType in schema fpml-business-events-5-10_xsd3 Drilldown into reportingRole in schema fpml-business-events-5-10_xsd3 Drilldown into supervisorRegistration in schema fpml-business-events-5-10_xsd3 Drilldown into supervisorRegistration in schema fpml-business-events-5-10_xsd3 Drilldown into name in schema fpml-business-events-5-10_xsd3 Drilldown into ReportingRegimeIdentifier in schema fpml-business-events-5-10_xsd3XSD Diagram of reportingRegime in schema fpml-business-events-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="reportingRegime" type="ReportingRegimeIdentifier" minOccurs="0" maxOccurs="unbounded" fpml-annotation:deprecated="true" fpml-annotation:deprecatedReason="Deprecated in favor of partyTradeInformation" xmlns:fpml-annotation="http://www.fpml.org/annotation">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">DEPRECATED. The supervisor/regulator to which this withdrawal applies</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsE:name (1) (1)
supervisorRegistration nsE:supervisorRegistration 0 unbounded
supervisorRegistration nsE:supervisorRegistration (1) unbounded
reportingRole nsE:reportingRole 0 (1)
actionType nsE:actionType 0 (1)
Collapse Derivation Tree:
