Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: RequestExecution
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:CorrectableRequestMessage
Containing Schema: fpml-confirmation-processes-5-10.xsd
Abstract
Documentation:
A message requesting that an order be executed.

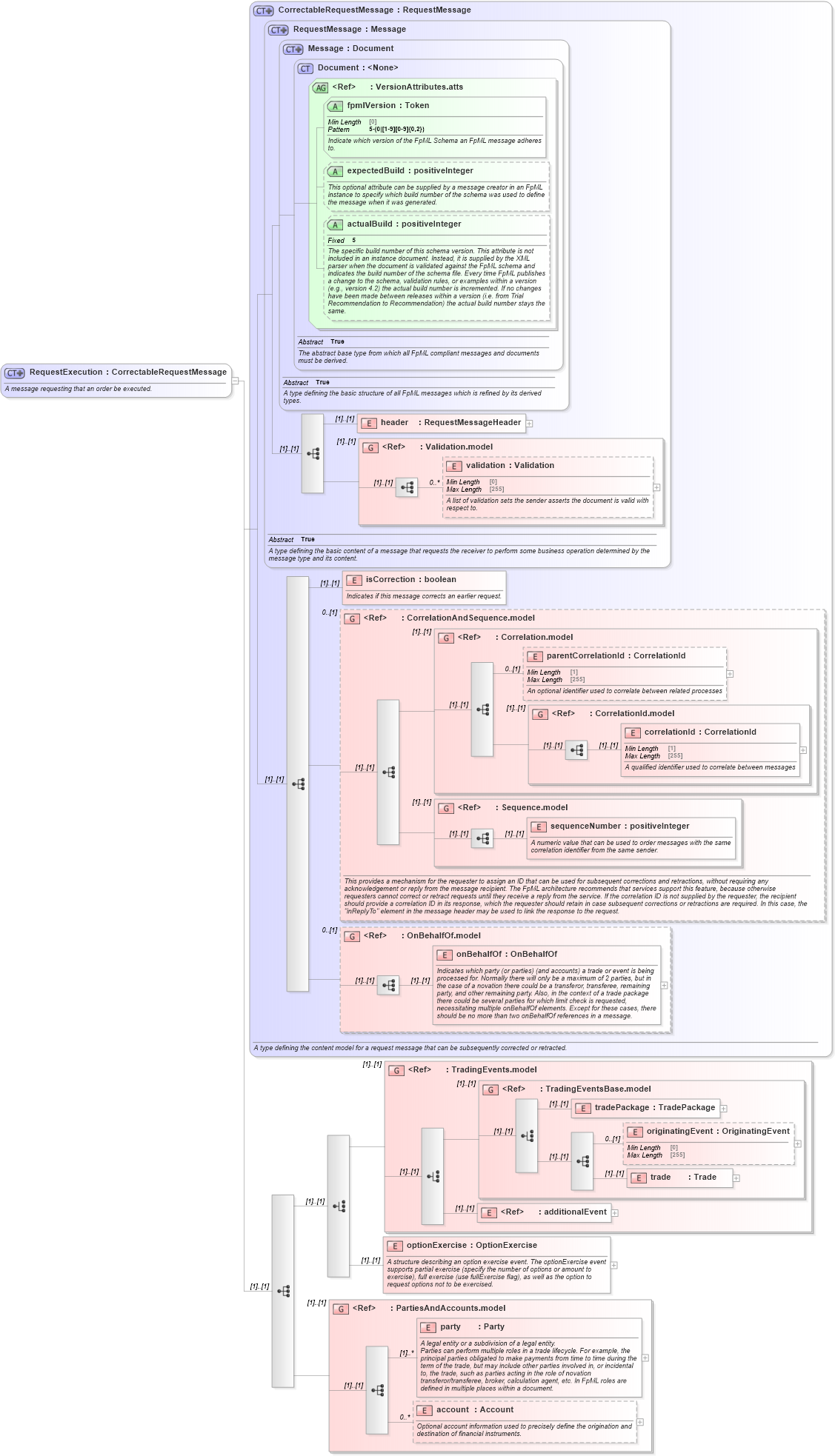

Collapse XSD Schema Diagram:
Drilldown into account in schema fpml-shared-5-10_xsd Drilldown into party in schema fpml-shared-5-10_xsd Drilldown into PartiesAndAccounts.model in schema fpml-shared-5-10_xsd Drilldown into optionExercise in schema fpml-confirmation-processes-5-10_xsd Drilldown into additionalEvent in schema fpml-business-events-5-10_xsd Drilldown into trade in schema fpml-business-events-5-10_xsd Drilldown into originatingEvent in schema fpml-business-events-5-10_xsd Drilldown into tradePackage in schema fpml-business-events-5-10_xsd Drilldown into TradingEventsBase.model in schema fpml-business-events-5-10_xsd Drilldown into TradingEvents.model in schema fpml-business-events-5-10_xsd Drilldown into onBehalfOf in schema fpml-shared-5-10_xsd Drilldown into OnBehalfOf.model in schema fpml-shared-5-10_xsd Drilldown into sequenceNumber in schema fpml-msg-5-10_xsd Drilldown into Sequence.model in schema fpml-msg-5-10_xsd Drilldown into correlationId in schema fpml-msg-5-10_xsd Drilldown into CorrelationId.model in schema fpml-msg-5-10_xsd Drilldown into parentCorrelationId in schema fpml-msg-5-10_xsd Drilldown into Correlation.model in schema fpml-msg-5-10_xsd Drilldown into CorrelationAndSequence.model in schema fpml-msg-5-10_xsd Drilldown into isCorrection in schema fpml-msg-5-10_xsd Drilldown into validation in schema fpml-doc-5-10_xsd Drilldown into Validation.model in schema fpml-doc-5-10_xsd Drilldown into header in schema fpml-msg-5-10_xsd Drilldown into actualBuild in schema fpml-doc-5-10_xsd Drilldown into expectedBuild in schema fpml-doc-5-10_xsd Drilldown into fpmlVersion in schema fpml-doc-5-10_xsd Drilldown into VersionAttributes.atts in schema fpml-doc-5-10_xsd Drilldown into Document in schema fpml-doc-5-10_xsd Drilldown into Message in schema fpml-msg-5-10_xsd Drilldown into RequestMessage in schema fpml-msg-5-10_xsd Drilldown into CorrectableRequestMessage in schema fpml-msg-5-10_xsdXSD Diagram of RequestExecution in schema fpml-confirmation-processes-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="RequestExecution">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A message requesting that an order be executed.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="CorrectableRequestMessage">
            <xsd:sequence>
                <xsd:choice>
                    <xsd:group ref="TradingEvents.model" />
                    <xsd:element name="optionExercise" type="OptionExercise">
                        <xsd:annotation>
                            <xsd:documentation xml:lang="en">A structure describing an option exercise event. The optionExercise event supports partial exercise (specify the number of options or amount to exercise), full exercise (use fullExercise flag), as well as the option to request options not to be exercised.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:choice>
                <xsd:group ref="PartiesAndAccounts.model" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
header nsA:header (1) (1)
validation nsA:validation 0 unbounded
isCorrection nsA:isCorrection (1) (1)
parentCorrelationId nsA:parentCorrelationId 0 (1)
correlationId nsA:correlationId (1) (1)
sequenceNumber nsA:sequenceNumber (1) (1)
onBehalfOf nsA:onBehalfOf (1) (1)
tradePackage nsA:tradePackage (1) (1)
originatingEvent nsA:originatingEvent 0 (1)
trade nsA:trade (1) (1)
additionalEvent nsA:additionalEvent (1) (1)
optionExercise nsA:optionExercise (1) (1)
party nsA:party (1) unbounded
account nsA:account 0 unbounded
<xs:group> nsA:Validation.model (1) (1)
<xs:group> nsA:CorrelationAndSequence.model 0 (1)
<xs:group> nsA:Correlation.model (1) (1)
<xs:group> nsA:CorrelationId.model (1) (1)
<xs:group> nsA:Sequence.model (1) (1)
<xs:group> nsA:OnBehalfOf.model 0 (1)
<xs:group> nsA:TradingEvents.model (1) (1)
<xs:group> nsA:TradingEventsBase.model (1) (1)
<xs:group> nsA:PartiesAndAccounts.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
fpmlVersion nsA:fpmlVersion Required
expectedBuild nsA:expectedBuild (Optional)
actualBuild nsA:actualBuild (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:requestExecution
