Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: RequestMargin
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:CorrectableRequestMessage
Containing Schema: fpml-collateral-processes-5-10.xsd
Abstract

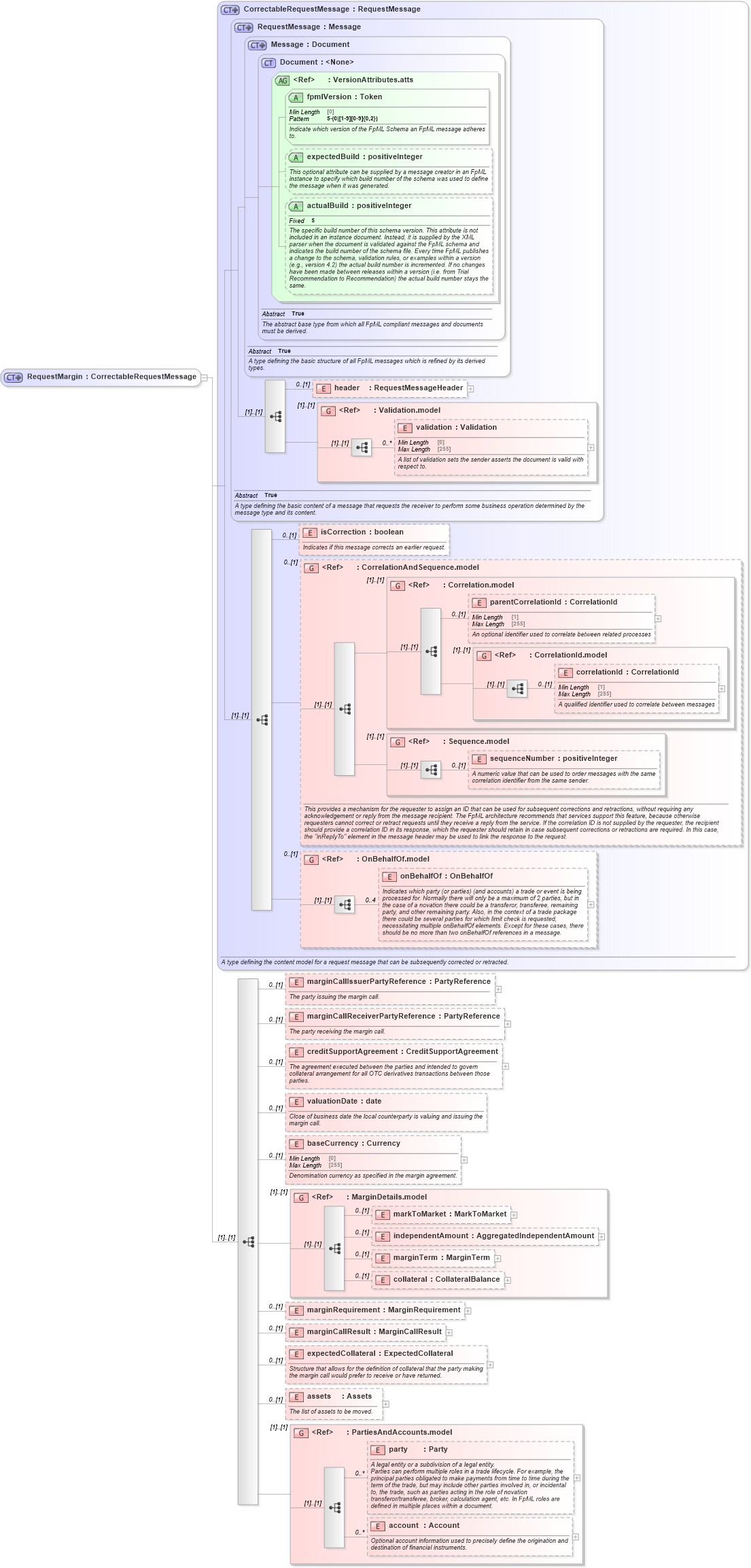

Collapse XSD Schema Diagram:
Drilldown into account in schema fpml-shared-5-10_xsd4 Drilldown into party in schema fpml-shared-5-10_xsd4 Drilldown into PartiesAndAccounts.model in schema fpml-shared-5-10_xsd4 Drilldown into assets in schema fpml-collateral-processes-5-10_xsd Drilldown into expectedCollateral in schema fpml-collateral-processes-5-10_xsd Drilldown into marginCallResult in schema fpml-collateral-processes-5-10_xsd Drilldown into marginRequirement in schema fpml-collateral-processes-5-10_xsd Drilldown into collateral in schema fpml-collateral-processes-5-10_xsd Drilldown into marginTerm in schema fpml-collateral-processes-5-10_xsd Drilldown into independentAmount in schema fpml-collateral-processes-5-10_xsd Drilldown into markToMarket in schema fpml-collateral-processes-5-10_xsd Drilldown into MarginDetails.model in schema fpml-collateral-processes-5-10_xsd Drilldown into baseCurrency in schema fpml-collateral-processes-5-10_xsd Drilldown into valuationDate in schema fpml-collateral-processes-5-10_xsd Drilldown into creditSupportAgreement in schema fpml-collateral-processes-5-10_xsd Drilldown into marginCallReceiverPartyReference in schema fpml-collateral-processes-5-10_xsd Drilldown into marginCallIssuerPartyReference in schema fpml-collateral-processes-5-10_xsd Drilldown into onBehalfOf in schema fpml-shared-5-10_xsd4 Drilldown into OnBehalfOf.model in schema fpml-shared-5-10_xsd4 Drilldown into sequenceNumber in schema fpml-msg-5-10_xsd3 Drilldown into Sequence.model in schema fpml-msg-5-10_xsd3 Drilldown into correlationId in schema fpml-msg-5-10_xsd3 Drilldown into CorrelationId.model in schema fpml-msg-5-10_xsd3 Drilldown into parentCorrelationId in schema fpml-msg-5-10_xsd3 Drilldown into Correlation.model in schema fpml-msg-5-10_xsd3 Drilldown into CorrelationAndSequence.model in schema fpml-msg-5-10_xsd3 Drilldown into isCorrection in schema fpml-msg-5-10_xsd3 Drilldown into validation in schema fpml-doc-5-10_xsd4 Drilldown into Validation.model in schema fpml-doc-5-10_xsd4 Drilldown into header in schema fpml-msg-5-10_xsd3 Drilldown into actualBuild in schema fpml-doc-5-10_xsd4 Drilldown into expectedBuild in schema fpml-doc-5-10_xsd4 Drilldown into fpmlVersion in schema fpml-doc-5-10_xsd4 Drilldown into VersionAttributes.atts in schema fpml-doc-5-10_xsd4 Drilldown into Document in schema fpml-doc-5-10_xsd4 Drilldown into Message in schema fpml-msg-5-10_xsd3 Drilldown into RequestMessage in schema fpml-msg-5-10_xsd3 Drilldown into CorrectableRequestMessage in schema fpml-msg-5-10_xsd3XSD Diagram of RequestMargin in schema fpml-collateral-processes-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="RequestMargin">
    <xsd:complexContent>
        <xsd:extension base="CorrectableRequestMessage">
            <xsd:sequence>
                <xsd:element name="marginCallIssuerPartyReference" type="PartyReference" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The party issuing the margin call.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="marginCallReceiverPartyReference" type="PartyReference" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The party receiving the margin call.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="creditSupportAgreement" type="CreditSupportAgreement" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The agreement executed between the parties and intended to govern collateral arrangement for all OTC derivatives transactions between those parties.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="valuationDate" type="xsd:date" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Close of business date the local counterparty is valuing and issuing the margin call.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="baseCurrency" type="Currency" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Denomination currency as specified in the margin agreement.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:group ref="MarginDetails.model" />
                <xsd:element name="marginRequirement" type="MarginRequirement" minOccurs="0" />
                <xsd:element name="marginCallResult" type="MarginCallResult" minOccurs="0" />
                <xsd:element name="expectedCollateral" type="ExpectedCollateral" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Structure that allows for the definition of collateral that the party making the margin call would prefer to receive or have returned.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="assets" type="Assets" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The list of assets to be moved.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:group ref="PartiesAndAccounts.model" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
header nsE:header 0 (1)
validation nsE:validation 0 unbounded
isCorrection nsE:isCorrection 0 (1)
parentCorrelationId nsE:parentCorrelationId 0 (1)
correlationId nsE:correlationId 0 (1)
sequenceNumber nsE:sequenceNumber 0 (1)
onBehalfOf nsE:onBehalfOf 0 4
marginCallIssuerPartyReference nsE:marginCallIssuerPartyReference 0 (1)
marginCallReceiverPartyReference nsE:marginCallReceiverPartyReference 0 (1)
creditSupportAgreement nsE:creditSupportAgreement 0 (1)
valuationDate nsE:valuationDate 0 (1)
baseCurrency nsE:baseCurrency 0 (1)
markToMarket nsE:markToMarket 0 (1)
independentAmount nsE:independentAmount 0 (1)
marginTerm nsE:marginTerm 0 (1)
collateral nsE:collateral 0 (1)
marginRequirement nsE:marginRequirement 0 (1)
marginCallResult nsE:marginCallResult 0 (1)
expectedCollateral nsE:expectedCollateral 0 (1)
assets nsE:assets 0 (1)
party nsE:party 0 unbounded
account nsE:account 0 unbounded
<xs:group> nsE:Validation.model (1) (1)
<xs:group> nsE:CorrelationAndSequence.model 0 (1)
<xs:group> nsE:Correlation.model (1) (1)
<xs:group> nsE:CorrelationId.model (1) (1)
<xs:group> nsE:Sequence.model (1) (1)
<xs:group> nsE:OnBehalfOf.model 0 (1)
<xs:group> nsE:MarginDetails.model (1) (1)
<xs:group> nsE:PartiesAndAccounts.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
fpmlVersion nsE:fpmlVersion Required
expectedBuild nsE:expectedBuild (Optional)
actualBuild nsE:actualBuild (Optional)
Collapse Derivation Tree:
Collapse References:
nsE:requestMargin
