Definition Type: ComplexType
Name: ReturnSwapPaymentDates
Namespace: http://www.fpml.org/FpML-5/transparency
Containing Schema: fpml-eq-shared-5-10.xsd
Abstract
Documentation:
A type describing the return payment dates of the swap.

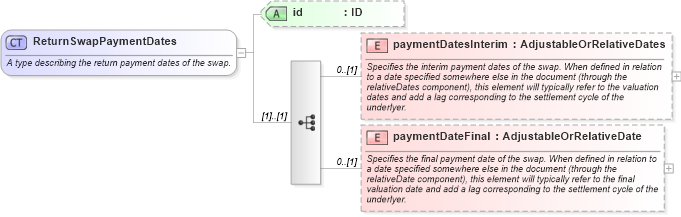

Collapse XSD Schema Diagram:
Drilldown into paymentDateFinal in schema fpml-eq-shared-5-10_xsd3 Drilldown into paymentDatesInterim in schema fpml-eq-shared-5-10_xsd3 Drilldown into id in schema fpml-eq-shared-5-10_xsd3XSD Diagram of ReturnSwapPaymentDates in schema fpml-eq-shared-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="ReturnSwapPaymentDates">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type describing the return payment dates of the swap.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="paymentDatesInterim" type="AdjustableOrRelativeDates" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Specifies the interim payment dates of the swap. When defined in relation to a date specified somewhere else in the document (through the relativeDates component), this element will typically refer to the valuation dates and add a lag corresponding to the settlement cycle of the underlyer.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="paymentDateFinal" type="AdjustableOrRelativeDate" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Specifies the final payment date of the swap. When defined in relation to a date specified somewhere else in the document (through the relativeDate component), this element will typically refer to the final valuation date and add a lag corresponding to the settlement cycle of the underlyer.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
paymentDatesInterim nsF:paymentDatesInterim 0 (1)
paymentDateFinal nsF:paymentDateFinal 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsF:paymentDates
