Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: Routing
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-shared-5-10.xsd
Abstract
Documentation:
A type that provides three alternative ways of identifying a party involved in the routing of a payment. The identification may use payment system identifiers only; actual name, address and other reference information; or a combination of both.

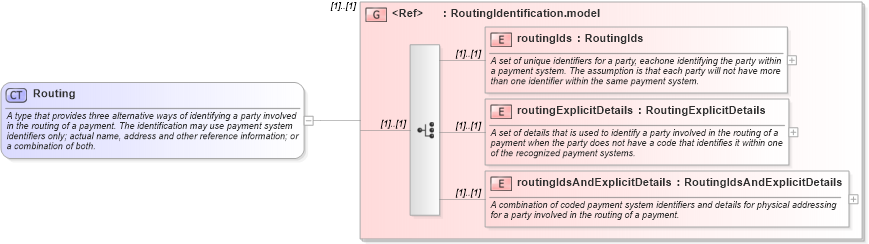

Collapse XSD Schema Diagram:
Drilldown into routingIdsAndExplicitDetails in schema fpml-shared-5-10_xsd Drilldown into routingExplicitDetails in schema fpml-shared-5-10_xsd Drilldown into routingIds in schema fpml-shared-5-10_xsd Drilldown into RoutingIdentification.model in schema fpml-shared-5-10_xsdXSD Diagram of Routing in schema fpml-shared-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="Routing">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type that provides three alternative ways of identifying a party involved in the routing of a payment. The identification may use payment system identifiers only; actual name, address and other reference information; or a combination of both.</xsd:documentation>
    </xsd:annotation>
    <xsd:group ref="RoutingIdentification.model" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
routingIds nsA:routingIds (1) (1)
routingExplicitDetails nsA:routingExplicitDetails (1) (1)
routingIdsAndExplicitDetails nsA:routingIdsAndExplicitDetails (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:beneficiary, nsA:beneficiaryBank
