Definition Type: ComplexType
Name: RoutingExplicitDetails
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Containing Schema: fpml-shared-5-10.xsd
Abstract
Documentation:
A type that models name, address and supplementary textual information for the purposes of identifying a party involved in the routing of a payment.

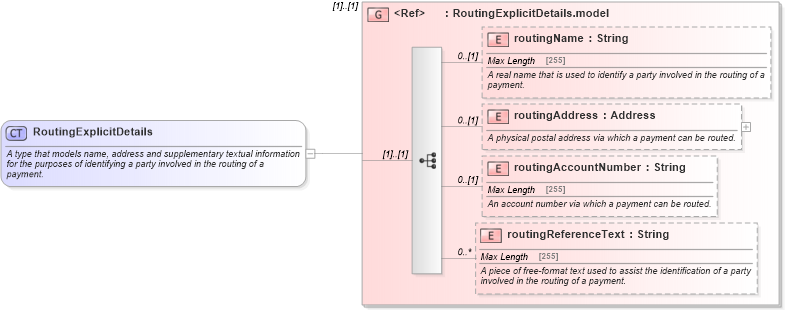

Collapse XSD Schema Diagram:
Drilldown into routingReferenceText in schema fpml-shared-5-10_xsd3 Drilldown into routingAccountNumber in schema fpml-shared-5-10_xsd3 Drilldown into routingAddress in schema fpml-shared-5-10_xsd3 Drilldown into routingName in schema fpml-shared-5-10_xsd3 Drilldown into RoutingExplicitDetails.model in schema fpml-shared-5-10_xsd3XSD Diagram of RoutingExplicitDetails in schema fpml-shared-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="RoutingExplicitDetails">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type that models name, address and supplementary textual information for the purposes of identifying a party involved in the routing of a payment.</xsd:documentation>
    </xsd:annotation>
    <xsd:group ref="RoutingExplicitDetails.model" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
routingName nsD:routingName 0 (1)
routingAddress nsD:routingAddress 0 (1)
routingAccountNumber nsD:routingAccountNumber 0 (1)
routingReferenceText nsD:routingReferenceText 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsD:routingExplicitDetails
