Definition Type: Group
Name: RoutingExplicitDetails.model
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Containing Schema: fpml-shared-5-10.xsd
Collapse XSD Schema Diagram:

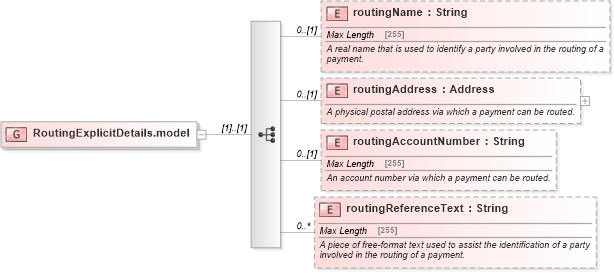

Drilldown into routingReferenceText in schema fpml-shared-5-10_xsd3 Drilldown into routingAccountNumber in schema fpml-shared-5-10_xsd3 Drilldown into routingAddress in schema fpml-shared-5-10_xsd3 Drilldown into routingName in schema fpml-shared-5-10_xsd3XSD Diagram of RoutingExplicitDetails.model in schema fpml-shared-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:group name="RoutingExplicitDetails.model">
    <xsd:sequence>
        <xsd:element name="routingName" type="String" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A real name that is used to identify a party involved in the routing of a payment.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="routingAddress" type="Address" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A physical postal address via which a payment can be routed.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="routingAccountNumber" type="String" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">An account number via which a payment can be routed.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="routingReferenceText" type="String" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">A piece of free-format text used to assist the identification of a party involved in the routing of a payment.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
routingName nsD:routingName 0 (1)
routingAddress nsD:routingAddress 0 (1)
routingAccountNumber nsD:routingAccountNumber 0 (1)
routingReferenceText nsD:routingReferenceText 0 unbounded
