Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: scheduledDate
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:ScheduledDate
Containing Schema: fpml-reconciliation-5-10.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Position level schedule date, such as final payment dates, in a simple and flexible format.

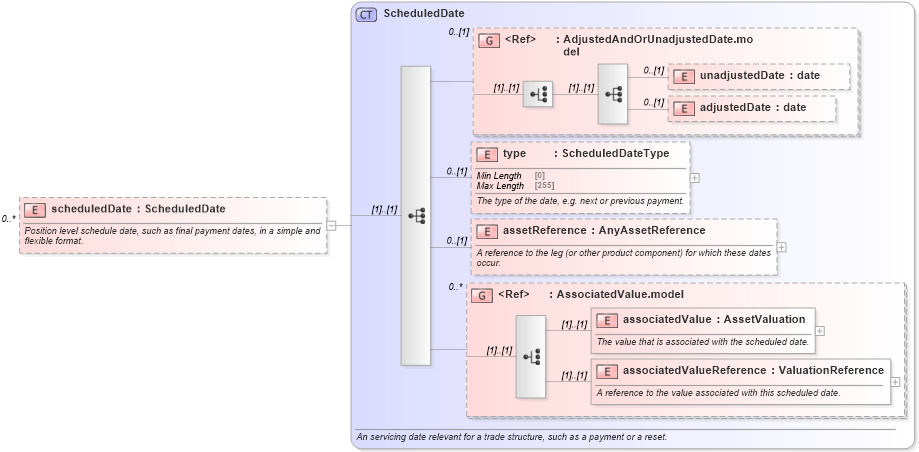

Collapse XSD Schema Diagram:
Drilldown into associatedValueReference in schema fpml-valuation-5-10_xsd2 Drilldown into associatedValue in schema fpml-valuation-5-10_xsd2 Drilldown into AssociatedValue.model in schema fpml-valuation-5-10_xsd2 Drilldown into assetReference in schema fpml-valuation-5-10_xsd2 Drilldown into type in schema fpml-valuation-5-10_xsd2 Drilldown into adjustedDate in schema fpml-valuation-5-10_xsd2 Drilldown into unadjustedDate in schema fpml-valuation-5-10_xsd2 Drilldown into AdjustedAndOrUnadjustedDate.model in schema fpml-valuation-5-10_xsd2 Drilldown into ScheduledDate in schema fpml-valuation-5-10_xsd2XSD Diagram of scheduledDate in schema fpml-reconciliation-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="scheduledDate" type="ScheduledDate" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Position level schedule date, such as final payment dates, in a simple and flexible format.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
unadjustedDate nsE:unadjustedDate 0 (1)
adjustedDate nsE:adjustedDate 0 (1)
type nsE:type 0 (1)
assetReference nsE:assetReference 0 (1)
associatedValue nsE:associatedValue (1) (1)
associatedValueReference nsE:associatedValueReference (1) (1)
<xs:group> nsE:AdjustedAndOrUnadjustedDate.model 0 (1)
<xs:group> nsE:AssociatedValue.model 0 unbounded
Collapse Derivation Tree:
