Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: sellerHub
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:CommodityHub
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The hub code of the has seller.

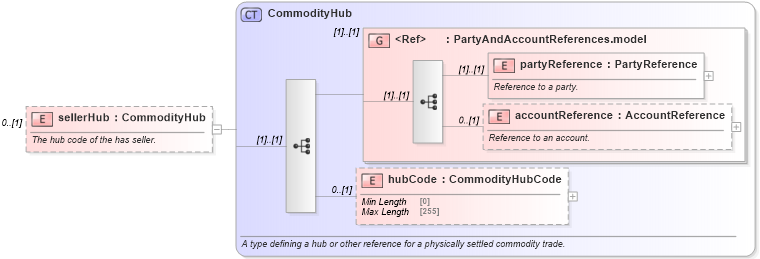

Collapse XSD Schema Diagram:
Drilldown into hubCode in schema fpml-com-5-10_xsd1 Drilldown into accountReference in schema fpml-shared-5-10_xsd3 Drilldown into partyReference in schema fpml-shared-5-10_xsd3 Drilldown into PartyAndAccountReferences.model in schema fpml-shared-5-10_xsd3 Drilldown into CommodityHub in schema fpml-com-5-10_xsd1XSD Diagram of sellerHub in schema fpml-com-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="sellerHub" type="CommodityHub" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The hub code of the has seller.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
partyReference nsD:partyReference (1) (1)
accountReference nsD:accountReference 0 (1)
hubCode nsD:hubCode 0 (1)
<xs:group> nsD:PartyAndAccountReferences.model (1) (1)
Collapse Derivation Tree:
