Definition Type: ComplexType
Name: ServiceNotification
Namespace: http://www.fpml.org/FpML-5/confirmation
Type: nsA:NotificationMessage
Containing Schema: fpml-msg-5-10.xsd
Abstract
Documentation:
A type defining the content model for a message that allows a service to send a notification message to a user of the service.

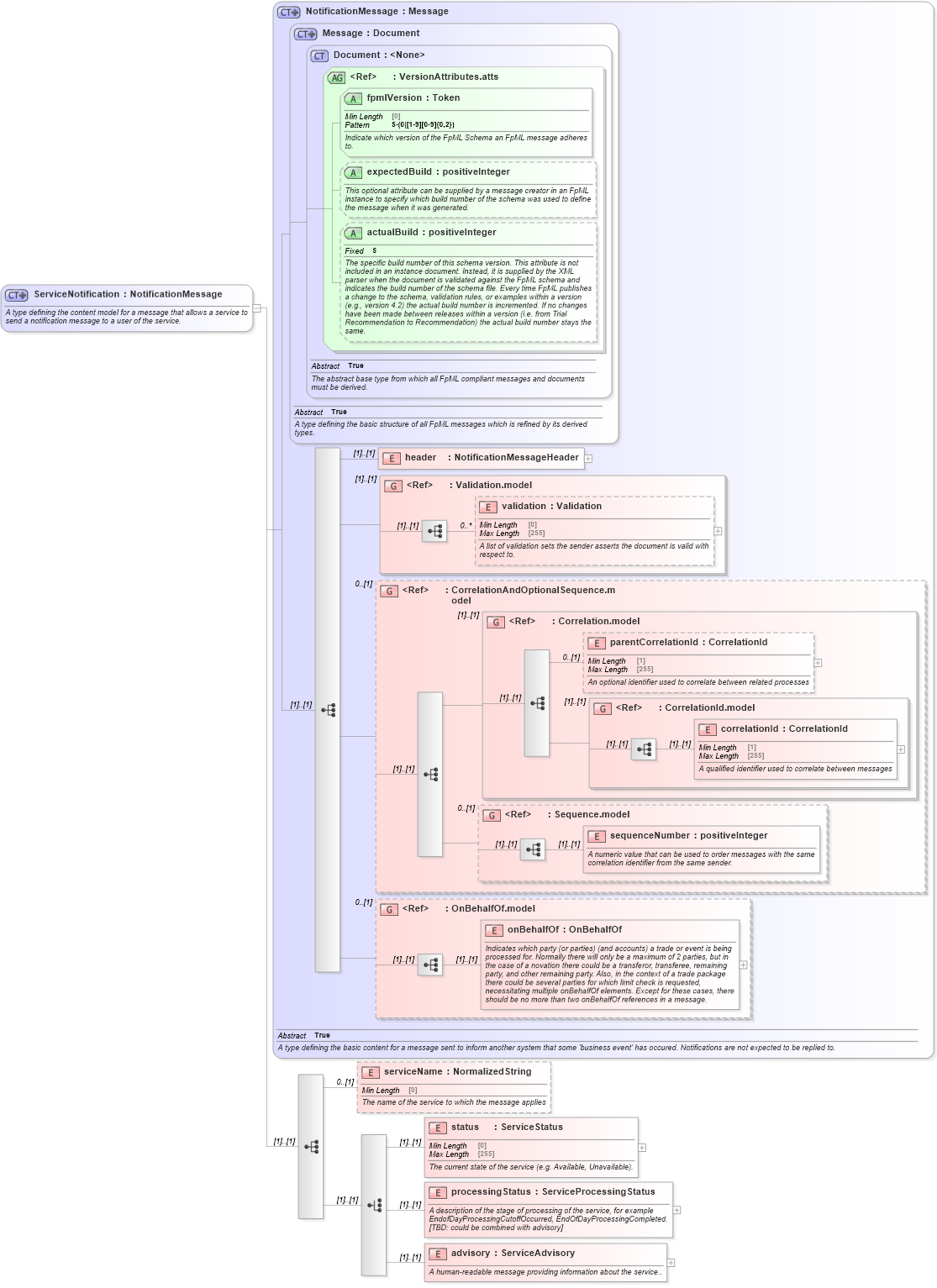

Collapse XSD Schema Diagram:
Drilldown into advisory in schema fpml-msg-5-10_xsd Drilldown into processingStatus in schema fpml-msg-5-10_xsd Drilldown into status in schema fpml-msg-5-10_xsd Drilldown into serviceName in schema fpml-msg-5-10_xsd Drilldown into onBehalfOf in schema fpml-shared-5-10_xsd Drilldown into OnBehalfOf.model in schema fpml-shared-5-10_xsd Drilldown into sequenceNumber in schema fpml-msg-5-10_xsd Drilldown into Sequence.model in schema fpml-msg-5-10_xsd Drilldown into correlationId in schema fpml-msg-5-10_xsd Drilldown into CorrelationId.model in schema fpml-msg-5-10_xsd Drilldown into parentCorrelationId in schema fpml-msg-5-10_xsd Drilldown into Correlation.model in schema fpml-msg-5-10_xsd Drilldown into CorrelationAndOptionalSequence.model in schema fpml-msg-5-10_xsd Drilldown into validation in schema fpml-doc-5-10_xsd Drilldown into Validation.model in schema fpml-doc-5-10_xsd Drilldown into header in schema fpml-msg-5-10_xsd Drilldown into actualBuild in schema fpml-doc-5-10_xsd Drilldown into expectedBuild in schema fpml-doc-5-10_xsd Drilldown into fpmlVersion in schema fpml-doc-5-10_xsd Drilldown into VersionAttributes.atts in schema fpml-doc-5-10_xsd Drilldown into Document in schema fpml-doc-5-10_xsd Drilldown into Message in schema fpml-msg-5-10_xsd Drilldown into NotificationMessage in schema fpml-msg-5-10_xsdXSD Diagram of ServiceNotification in schema fpml-msg-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="ServiceNotification">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A type defining the content model for a message that allows a service to send a notification message to a user of the service.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="NotificationMessage">
            <xsd:sequence>
                <xsd:element name="serviceName" type="NormalizedString" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">The name of the service to which the message applies</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:choice>
                    <xsd:element name="status" type="ServiceStatus">
                        <xsd:annotation>
                            <xsd:documentation xml:lang="en">The current state of the service (e.g. Available, Unavailable).</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="processingStatus" type="ServiceProcessingStatus">
                        <xsd:annotation>
                            <xsd:documentation xml:lang="en">A description of the stage of processing of the service, for example EndofDayProcessingCutoffOccurred, EndOfDayProcessingCompleted. [TBD: could be combined with advisory]</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="advisory" type="ServiceAdvisory">
                        <xsd:annotation>
                            <xsd:documentation xml:lang="en">A human-readable message providing information about the service..</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:choice>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
header nsA:header (1) (1)
validation nsA:validation 0 unbounded
parentCorrelationId nsA:parentCorrelationId 0 (1)
correlationId nsA:correlationId (1) (1)
sequenceNumber nsA:sequenceNumber (1) (1)
onBehalfOf nsA:onBehalfOf (1) (1)
serviceName nsA:serviceName 0 (1)
status nsA:status (1) (1)
processingStatus nsA:processingStatus (1) (1)
advisory nsA:advisory (1) (1)
<xs:group> nsA:Validation.model (1) (1)
<xs:group> nsA:CorrelationAndOptionalSequence.model 0 (1)
<xs:group> nsA:Correlation.model (1) (1)
<xs:group> nsA:CorrelationId.model (1) (1)
<xs:group> nsA:Sequence.model 0 (1)
<xs:group> nsA:OnBehalfOf.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
fpmlVersion nsA:fpmlVersion Required
expectedBuild nsA:expectedBuild (Optional)
actualBuild nsA:actualBuild (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:serviceNotification
