Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: settlementAmount
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:NonNegativeMoney
Containing Schema: fpml-fx-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The total amount of settlement currency that will be paid over the life of the trade if calculable. The Settlement Amount element is a synonym for Contra Amount.

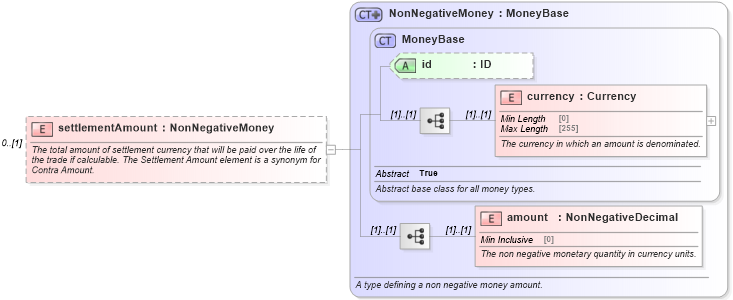

Collapse XSD Schema Diagram:
Drilldown into amount in schema fpml-shared-5-10_xsd3 Drilldown into currency in schema fpml-shared-5-10_xsd3 Drilldown into id in schema fpml-shared-5-10_xsd3 Drilldown into MoneyBase in schema fpml-shared-5-10_xsd3 Drilldown into NonNegativeMoney in schema fpml-shared-5-10_xsd3XSD Diagram of settlementAmount in schema fpml-fx-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementAmount" type="NonNegativeMoney" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The total amount of settlement currency that will be paid over the life of the trade if calculable. The Settlement Amount element is a synonym for Contra Amount.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
currency nsD:currency (1) (1)
amount nsD:amount (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
