Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: settlementCurrency
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:IdentifiedCurrency
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The currency into which the Commodity Option Transaction will settle. If this is not the same as the currency in which the Commodity Reference Price is quoted, then an FX determination method should also be specified.

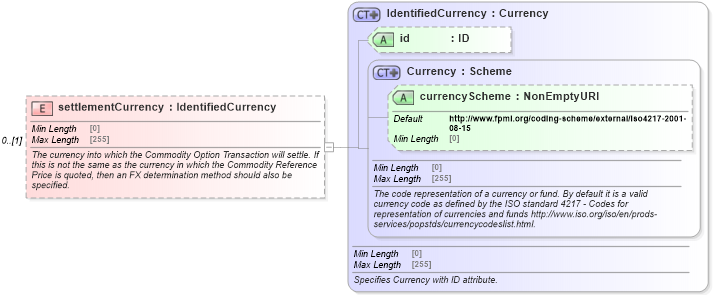

Collapse XSD Schema Diagram:
Drilldown into currencyScheme in schema fpml-shared-5-10_xsd4 Drilldown into Currency in schema fpml-shared-5-10_xsd4 Drilldown into id in schema fpml-shared-5-10_xsd4 Drilldown into IdentifiedCurrency in schema fpml-shared-5-10_xsd4XSD Diagram of settlementCurrency in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementCurrency" type="IdentifiedCurrency" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The currency into which the Commodity Option Transaction will settle. If this is not the same as the currency in which the Commodity Reference Price is quoted, then an FX determination method should also be specified.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
currencyScheme nsE:currencyScheme http://www.fpml.org/coding-scheme/external/iso4217-2001-08-15 (Optional)
id nsE:id (Optional)
Collapse Derivation Tree:
