Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: settlementDate
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:AdjustableOrAdjustedDate
Containing Schema: fpml-fx-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The date on which the Settlement Amount will be settled.

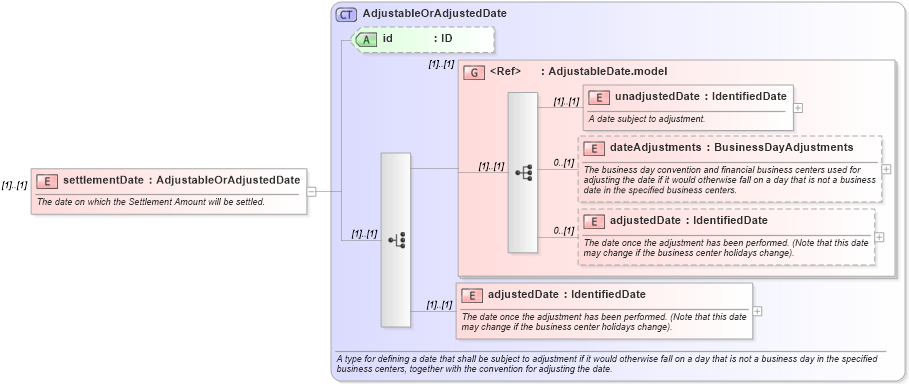

Collapse XSD Schema Diagram:
Drilldown into adjustedDate in schema fpml-shared-5-10_xsd3 Drilldown into adjustedDate in schema fpml-shared-5-10_xsd3 Drilldown into dateAdjustments in schema fpml-shared-5-10_xsd3 Drilldown into unadjustedDate in schema fpml-shared-5-10_xsd3 Drilldown into AdjustableDate.model in schema fpml-shared-5-10_xsd3 Drilldown into id in schema fpml-shared-5-10_xsd3 Drilldown into AdjustableOrAdjustedDate in schema fpml-shared-5-10_xsd3XSD Diagram of settlementDate in schema fpml-fx-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementDate" type="AdjustableOrAdjustedDate">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The date on which the Settlement Amount will be settled.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
unadjustedDate nsD:unadjustedDate (1) (1)
dateAdjustments nsD:dateAdjustments 0 (1)
adjustedDate nsD:adjustedDate 0 (1)
adjustedDate nsD:adjustedDate (1) (1)
<xs:group> nsD:AdjustableDate.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
