Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: settlementInstruction
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:SettlementInstruction
Containing Schema: fpml-shared-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
An explicit specification of how a currency payment is to be made, when the payment is not netted and the route is other than the recipient's standard settlement instruction.

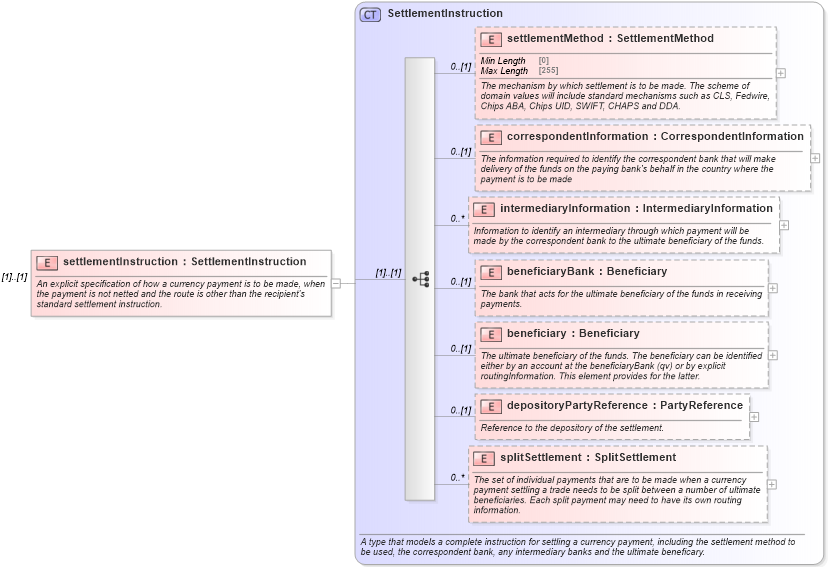

Collapse XSD Schema Diagram:
Drilldown into splitSettlement in schema fpml-shared-5-10_xsd3 Drilldown into depositoryPartyReference in schema fpml-shared-5-10_xsd3 Drilldown into beneficiary in schema fpml-shared-5-10_xsd3 Drilldown into beneficiaryBank in schema fpml-shared-5-10_xsd3 Drilldown into intermediaryInformation in schema fpml-shared-5-10_xsd3 Drilldown into correspondentInformation in schema fpml-shared-5-10_xsd3 Drilldown into settlementMethod in schema fpml-shared-5-10_xsd3 Drilldown into SettlementInstruction in schema fpml-shared-5-10_xsd3XSD Diagram of settlementInstruction in schema fpml-shared-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementInstruction" type="SettlementInstruction">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">An explicit specification of how a currency payment is to be made, when the payment is not netted and the route is other than the recipient's standard settlement instruction.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
settlementMethod nsD:settlementMethod 0 (1)
correspondentInformation nsD:correspondentInformation 0 (1)
intermediaryInformation nsD:intermediaryInformation 0 unbounded
beneficiaryBank nsD:beneficiaryBank 0 (1)
beneficiary nsD:beneficiary 0 (1)
depositoryPartyReference nsD:depositoryPartyReference 0 (1)
splitSettlement nsD:splitSettlement 0 unbounded
Collapse Derivation Tree:
