Documentation for Financial products Markup Language (FpML®)
Definition Type: ComplexType
Name: SettlementPeriod
Namespace: http://www.fpml.org/FpML-5/confirmation
Containing Schema: fpml-fx-targets-5-10.xsd
Abstract True

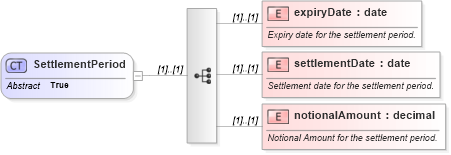

Collapse XSD Schema Diagram:
Drilldown into notionalAmount in schema fpml-fx-targets-5-10_xsd Drilldown into settlementDate in schema fpml-fx-targets-5-10_xsd Drilldown into expiryDate in schema fpml-fx-targets-5-10_xsdXSD Diagram of SettlementPeriod in schema fpml-fx-targets-5-10_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="SettlementPeriod" abstract="true">
    <xsd:sequence>
        <xsd:element name="expiryDate" type="xsd:date">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Expiry date for the settlement period.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="settlementDate" type="xsd:date">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Settlement date for the settlement period.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="notionalAmount" type="xsd:decimal">
            <xsd:annotation>
                <xsd:documentation xml:lang="en">Notional Amount for the settlement period.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
expiryDate nsA:expiryDate (1) (1)
settlementDate nsA:settlementDate (1) (1)
notionalAmount nsA:notionalAmount (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:FxAccrualSettlementPeriod, nsA:FxTargetSettlementPeriod
