Definition Type: ComplexType
Name: SettlementPeriodFixingDates
Namespace: http://www.fpml.org/FpML-5/reporting
Containing Schema: fpml-fx-targets-5-10.xsd
Abstract

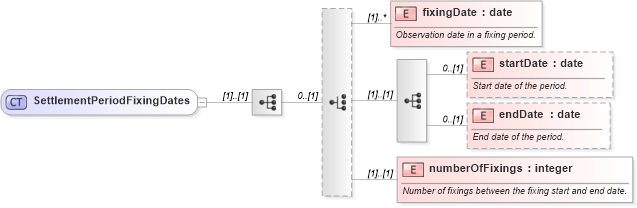

Collapse XSD Schema Diagram:
Drilldown into numberOfFixings in schema fpml-fx-targets-5-10_xsd2 Drilldown into endDate in schema fpml-fx-targets-5-10_xsd2 Drilldown into startDate in schema fpml-fx-targets-5-10_xsd2 Drilldown into fixingDate in schema fpml-fx-targets-5-10_xsd2XSD Diagram of SettlementPeriodFixingDates in schema fpml-fx-targets-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:complexType name="SettlementPeriodFixingDates">
    <xsd:sequence>
        <xsd:choice minOccurs="0">
            <xsd:element name="fixingDate" type="xsd:date" maxOccurs="unbounded">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Observation date in a fixing period.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:sequence>
                <xsd:element name="startDate" type="xsd:date" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">Start date of the period.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="endDate" type="xsd:date" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation xml:lang="en">End date of the period.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
            <xsd:element name="numberOfFixings" type="xsd:integer">
                <xsd:annotation>
                    <xsd:documentation xml:lang="en">Number of fixings between the fixing start and end date.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fixingDate nsE:fixingDate (1) unbounded
startDate nsE:startDate 0 (1)
endDate nsE:endDate 0 (1)
numberOfFixings nsE:numberOfFixings (1) (1)
Collapse Derivation Tree:
Collapse References:
nsE:accrualFixingDates, nsE:averageRateFixingDatesnsE:averageStrikeFixingDates,
