Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: settlementPeriodsNotionalQuantity
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:CommoditySettlementPeriodsNotionalQuantity
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
For an electricity transaction, the Notional Quantity for a one or more groups of Settlement Periods to which the Notional Quantity is based. If the schedule differs for different groups of Settlement Periods, this element should be repeated.

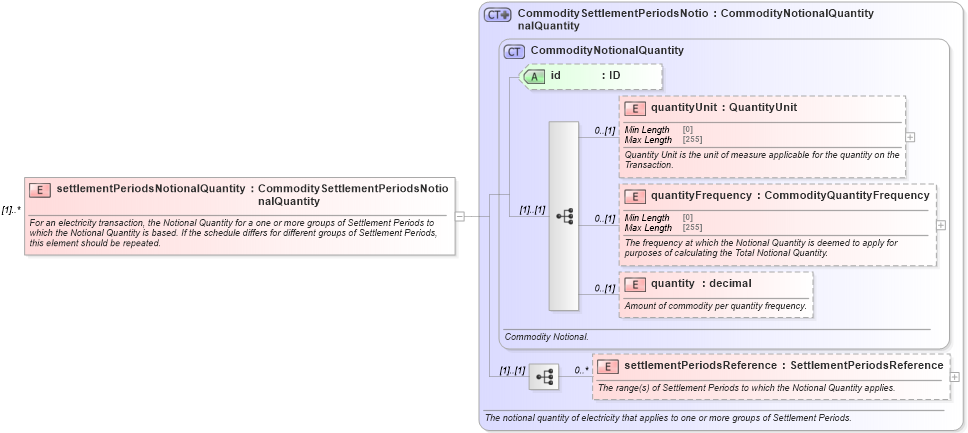

Collapse XSD Schema Diagram:
Drilldown into settlementPeriodsReference in schema fpml-com-5-10_xsd2 Drilldown into quantity in schema fpml-com-5-10_xsd2 Drilldown into quantityFrequency in schema fpml-com-5-10_xsd2 Drilldown into quantityUnit in schema fpml-com-5-10_xsd2 Drilldown into id in schema fpml-com-5-10_xsd2 Drilldown into CommodityNotionalQuantity in schema fpml-com-5-10_xsd2 Drilldown into CommoditySettlementPeriodsNotionalQuantity in schema fpml-com-5-10_xsd2XSD Diagram of settlementPeriodsNotionalQuantity in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementPeriodsNotionalQuantity" type="CommoditySettlementPeriodsNotionalQuantity" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">For an electricity transaction, the Notional Quantity for a one or more groups of Settlement Periods to which the Notional Quantity is based. If the schedule differs for different groups of Settlement Periods, this element should be repeated.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
quantityUnit nsE:quantityUnit 0 (1)
quantityFrequency nsE:quantityFrequency 0 (1)
quantity nsE:quantity 0 (1)
settlementPeriodsReference nsE:settlementPeriodsReference 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsE:id (Optional)
Collapse Derivation Tree:
