Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: settlementPeriodsPrice
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:SettlementPeriodsFixedPrice
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
For an electricity transaction, the fixed price for one or more groups of Settlement Periods on which fixed payments are based. If the fixed price differs for different groups of Settlement Periods, this element should be repeated.

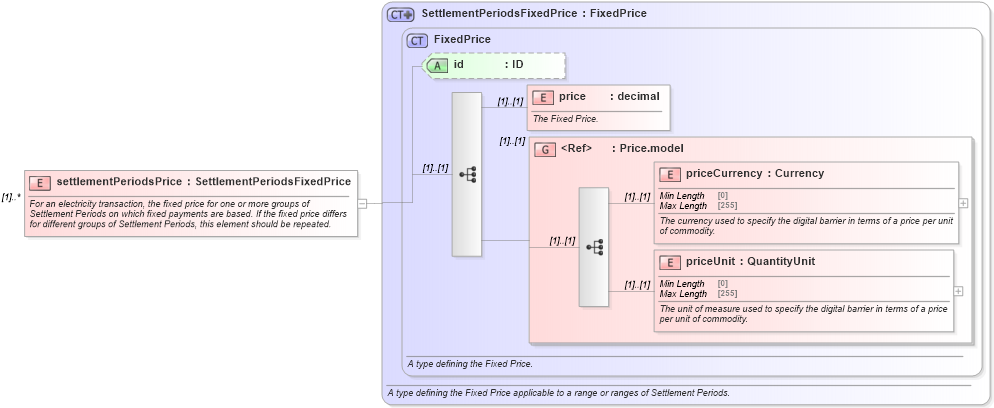

Collapse XSD Schema Diagram:
Drilldown into priceUnit in schema fpml-com-5-10_xsd3 Drilldown into priceCurrency in schema fpml-com-5-10_xsd3 Drilldown into Price.model in schema fpml-com-5-10_xsd3 Drilldown into price in schema fpml-com-5-10_xsd3 Drilldown into id in schema fpml-com-5-10_xsd3 Drilldown into FixedPrice in schema fpml-com-5-10_xsd3 Drilldown into SettlementPeriodsFixedPrice in schema fpml-com-5-10_xsd3XSD Diagram of settlementPeriodsPrice in schema fpml-com-5-10_xsd3 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementPeriodsPrice" type="SettlementPeriodsFixedPrice" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">For an electricity transaction, the fixed price for one or more groups of Settlement Periods on which fixed payments are based. If the fixed price differs for different groups of Settlement Periods, this element should be repeated.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
price nsF:price (1) (1)
priceCurrency nsF:priceCurrency (1) (1)
priceUnit nsF:priceUnit (1) (1)
<xs:group> nsF:Price.model (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsF:id (Optional)
Collapse Derivation Tree:
