Definition Type: Element
Name: settlementPeriodsPriceSchedule
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:CommoditySettlementPeriodsPriceSchedule
Containing Schema: fpml-com-5-10.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
For an electricity transaction, the fixed price schedule for one or more groups of Settlement Periods on which fixed payments are based. if the schedule differs for different groups of Settlement Periods, this element should be repeated.

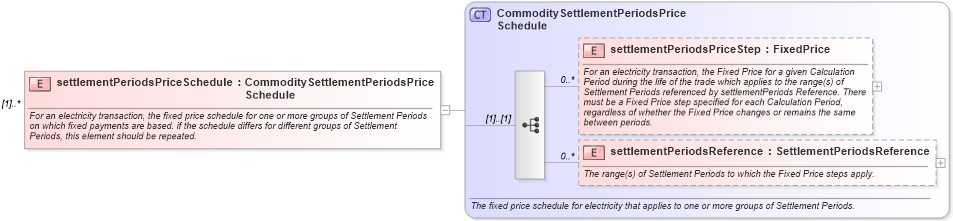

Collapse XSD Schema Diagram:
Drilldown into settlementPeriodsReference in schema fpml-com-5-10_xsd1 Drilldown into settlementPeriodsPriceStep in schema fpml-com-5-10_xsd1 Drilldown into CommoditySettlementPeriodsPriceSchedule in schema fpml-com-5-10_xsd1XSD Diagram of settlementPeriodsPriceSchedule in schema fpml-com-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementPeriodsPriceSchedule" type="CommoditySettlementPeriodsPriceSchedule" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">For an electricity transaction, the fixed price schedule for one or more groups of Settlement Periods on which fixed payments are based. if the schedule differs for different groups of Settlement Periods, this element should be repeated.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
settlementPeriodsPriceStep nsD:settlementPeriodsPriceStep 0 unbounded
settlementPeriodsReference nsD:settlementPeriodsReference 0 unbounded
Collapse Derivation Tree:
