Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: settlementPeriodsSchedule
Namespace: http://www.fpml.org/FpML-5/reporting
Type: nsE:SettlementPeriodsSchedule
Containing Schema: fpml-com-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The specification of the Settlement Periods in which the electricity will be delivered for a "shaped" trade i.e. where different Settlement Period ranges will apply to different periods of the trade.

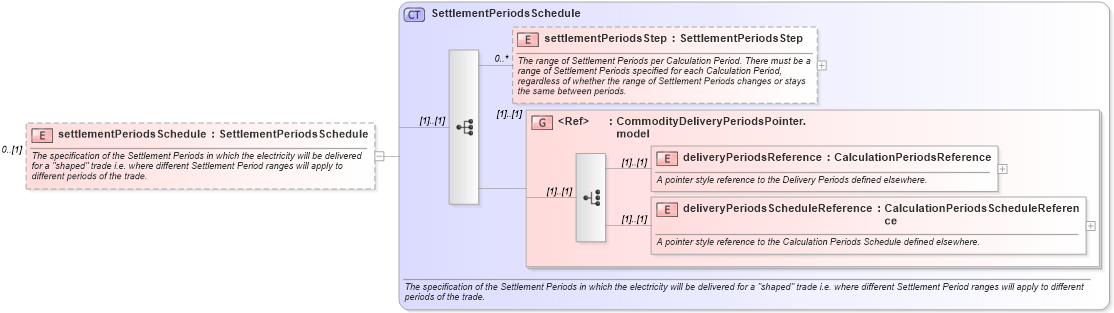

Collapse XSD Schema Diagram:
Drilldown into deliveryPeriodsScheduleReference in schema fpml-com-5-10_xsd2 Drilldown into deliveryPeriodsReference in schema fpml-com-5-10_xsd2 Drilldown into CommodityDeliveryPeriodsPointer.model in schema fpml-com-5-10_xsd2 Drilldown into settlementPeriodsStep in schema fpml-com-5-10_xsd2 Drilldown into SettlementPeriodsSchedule in schema fpml-com-5-10_xsd2XSD Diagram of settlementPeriodsSchedule in schema fpml-com-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementPeriodsSchedule" type="SettlementPeriodsSchedule" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The specification of the Settlement Periods in which the electricity will be delivered for a "shaped" trade i.e. where different Settlement Period ranges will apply to different periods of the trade.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
settlementPeriodsStep nsE:settlementPeriodsStep 0 unbounded
deliveryPeriodsReference nsE:deliveryPeriodsReference (1) (1)
deliveryPeriodsScheduleReference nsE:deliveryPeriodsScheduleReference (1) (1)
<xs:group> nsE:CommodityDeliveryPeriodsPointer.model (1) (1)
Collapse Derivation Tree:
