Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: settlementRateSource
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:SettlementRateSource
Containing Schema: fpml-ird-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The method for obtaining a settlement rate. This may be from some information source (e.g. Reuters) or from a set of reference banks.

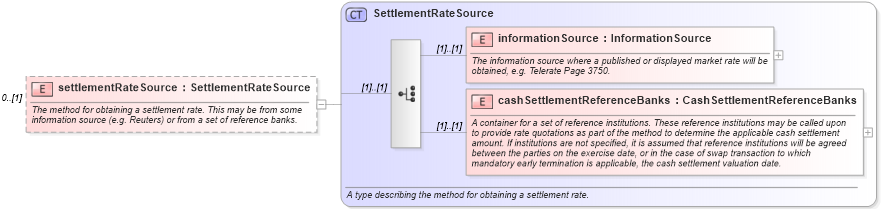

Collapse XSD Schema Diagram:
Drilldown into cashSettlementReferenceBanks in schema fpml-shared-5-10_xsd3 Drilldown into informationSource in schema fpml-shared-5-10_xsd3 Drilldown into SettlementRateSource in schema fpml-shared-5-10_xsd3XSD Diagram of settlementRateSource in schema fpml-ird-5-10_xsd2 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementRateSource" type="SettlementRateSource" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The method for obtaining a settlement rate. This may be from some information source (e.g. Reuters) or from a set of reference banks.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
informationSource nsD:informationSource (1) (1)
cashSettlementReferenceBanks nsD:cashSettlementReferenceBanks (1) (1)
Collapse Derivation Tree:
