Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: settlementSchedule
Namespace: http://www.fpml.org/FpML-5/recordkeeping
Type: nsD:FxSettlementSchedule
Containing Schema: fpml-fx-targets-5-10.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Defines the settlement/payment schedule of the target product.

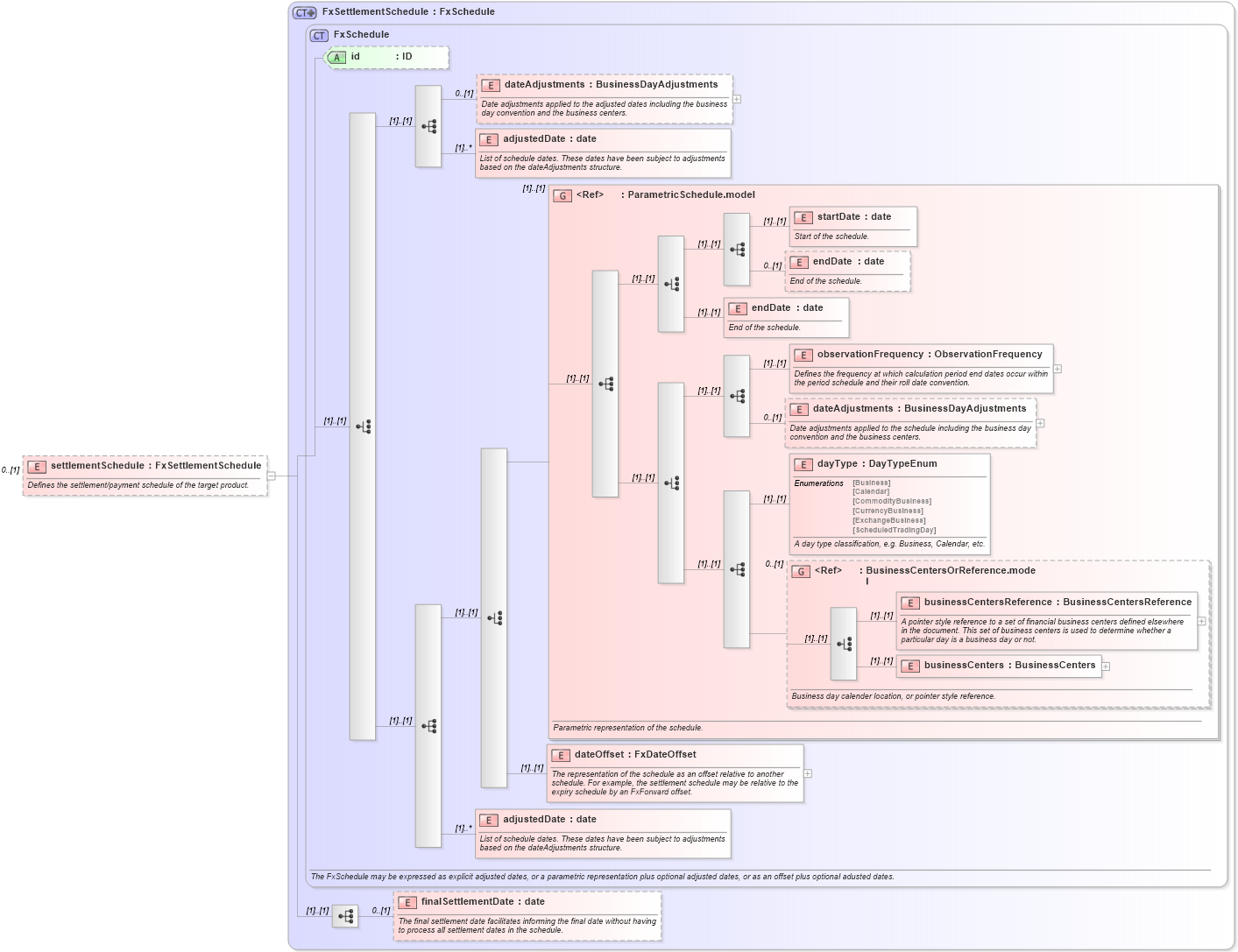

Collapse XSD Schema Diagram:
Drilldown into finalSettlementDate in schema fpml-fx-targets-5-10_xsd1 Drilldown into adjustedDate in schema fpml-fx-targets-5-10_xsd1 Drilldown into dateOffset in schema fpml-fx-targets-5-10_xsd1 Drilldown into businessCenters in schema fpml-shared-5-10_xsd3 Drilldown into businessCentersReference in schema fpml-shared-5-10_xsd3 Drilldown into BusinessCentersOrReference.model in schema fpml-shared-5-10_xsd3 Drilldown into dayType in schema fpml-fx-targets-5-10_xsd1 Drilldown into dateAdjustments in schema fpml-fx-targets-5-10_xsd1 Drilldown into observationFrequency in schema fpml-fx-targets-5-10_xsd1 Drilldown into endDate in schema fpml-fx-targets-5-10_xsd1 Drilldown into endDate in schema fpml-fx-targets-5-10_xsd1 Drilldown into startDate in schema fpml-fx-targets-5-10_xsd1 Drilldown into ParametricSchedule.model in schema fpml-fx-targets-5-10_xsd1 Drilldown into adjustedDate in schema fpml-fx-targets-5-10_xsd1 Drilldown into dateAdjustments in schema fpml-fx-targets-5-10_xsd1 Drilldown into id in schema fpml-fx-targets-5-10_xsd1 Drilldown into FxSchedule in schema fpml-fx-targets-5-10_xsd1 Drilldown into FxSettlementSchedule in schema fpml-fx-targets-5-10_xsd1XSD Diagram of settlementSchedule in schema fpml-fx-targets-5-10_xsd1 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="settlementSchedule" type="FxSettlementSchedule" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines the settlement/payment schedule of the target product.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
dateAdjustments nsD:dateAdjustments 0 (1)
adjustedDate nsD:adjustedDate (1) unbounded
startDate nsD:startDate (1) (1)
endDate nsD:endDate 0 (1)
endDate nsD:endDate (1) (1)
observationFrequency nsD:observationFrequency (1) (1)
dateAdjustments nsD:dateAdjustments 0 (1)
dayType nsD:dayType (1) (1)
businessCentersReference nsD:businessCentersReference (1) (1)
businessCenters nsD:businessCenters (1) (1)
dateOffset nsD:dateOffset (1) (1)
adjustedDate nsD:adjustedDate (1) unbounded
finalSettlementDate nsD:finalSettlementDate 0 (1)
<xs:group> nsD:ParametricSchedule.model (1) (1)
<xs:group> nsD:BusinessCentersOrReference.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsD:id (Optional)
Collapse Derivation Tree:
