Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: singleUnderlyer
Namespace: http://www.fpml.org/FpML-5/transparency
Type: nsF:SingleUnderlyer
Containing Schema: fpml-asset-5-10.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Describes the swap's underlyer when it has only one asset component.

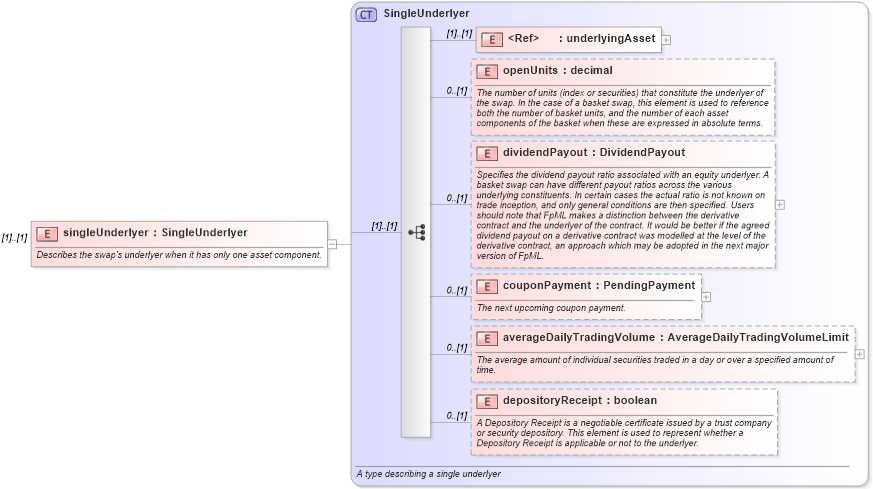

Collapse XSD Schema Diagram:
Drilldown into depositoryReceipt in schema fpml-asset-5-10_xsd5 Drilldown into averageDailyTradingVolume in schema fpml-asset-5-10_xsd5 Drilldown into couponPayment in schema fpml-asset-5-10_xsd5 Drilldown into dividendPayout in schema fpml-asset-5-10_xsd5 Drilldown into openUnits in schema fpml-asset-5-10_xsd5 Drilldown into underlyingAsset in schema fpml-asset-5-10_xsd5 Drilldown into SingleUnderlyer in schema fpml-asset-5-10_xsd5XSD Diagram of singleUnderlyer in schema fpml-asset-5-10_xsd5 (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="singleUnderlyer" type="SingleUnderlyer">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Describes the swap's underlyer when it has only one asset component.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
underlyingAsset nsF:underlyingAsset (1) (1)
openUnits nsF:openUnits 0 (1)
dividendPayout nsF:dividendPayout 0 (1)
couponPayment nsF:couponPayment 0 (1)
averageDailyTradingVolume nsF:averageDailyTradingVolume 0 (1)
depositoryReceipt nsF:depositoryReceipt 0 (1)
Collapse Derivation Tree:
